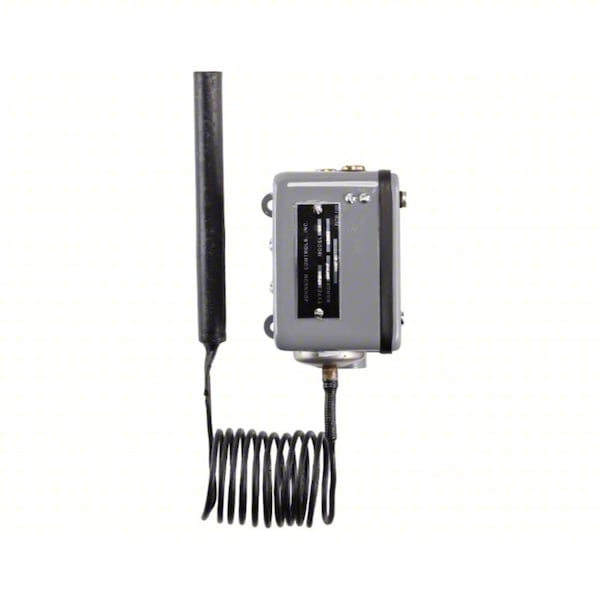

Line Voltage Mechanical Thermostat, Cool Only, 25 to 90F, Screwdriver, 120 to 600V AC, 1C, 1H

  • Mfr # A72AE-1C

  • Zoro # G5062005

product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Cooling Tower, Motorized Valves, Solenoid Operated Valves
Application
Cool Only
Switch Action
Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A72AE-1C
Zoro #
G5062005
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
72 in
Sensing Bulb Dia.
3/4 in
Overall Depth
3 in
Overall Width
3-1/8 in
Overall Height
4-1/8 in
Capillary Length/Bulb Diameter
6 ft Capillary, 6 3/4 in x 11/16 in Bulb
Mounting Hole Diameter
1/4 in, 3/8 in
Bulb Length
6 3/4 in
Bulb Diameter
3/4 in

Details

Compatible System Type
Cooling Tower, Motorized Valves, Solenoid Operated Valves
Application
Cool Only
Switch Action
Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
25 to 90 Degrees F
Control Type
Screwdriver
Voltage
120 to 600V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Enclosure Type
Steel, Weather Resistant
Resistive Amps @ 208VAC
24 A
Inductive Amps @ 240V
15 A, 24 A
Contact Rating Resistive @ 120V
24 A
Number of Switches
2
Sensor Type
Hydraulic Capillary Bulb (Copper)
Inductive Amps @ 120V
24 A
Includes
Remote Sensing Bulb
Inductive Amps @ 208V
24 A
Locked Rotor Amps @ 120V
144 A
Standards
CSA LR948/1222 01, UL SA516
Locked Rotor Amps @ 240V
144 A
Contact Rating Resistive @ 240V
24 A
Thermostat Type
Weatherproof Single-Stage Controls
Number of Relay Outputs
2
Number of Relay Inputs
2
For Use With
Cooling Towers and Evaporative Condensers
Phase
1, 2, 3
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Temperature
150 Degrees F
Pilot Duty Rating
125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC
Enclosure Finish
Baked Enamel
Full Load Amps @ 240V AC
24 A
Stages
1C
Temperature Sensitivity
+/-2 Degrees F
Contact Rating
120V AC, 208V AC, 220V AC, 240V AC
Electrical Connection Type
Hardwired
Differential Type
Adjustable
Temperature Differential
4 to 25 Degrees F
Minimum Control Temperature
25 Degrees F
Enclosure Color
Gray
Full Load Amps @ 120V AC
24 A
Contact Type
Snap Action
Changeover Type
Manual
Number of Poles
2
Sensor Location
Remote
Minimum Operating Temperature
-65 Degrees F
Maximum Control Temperature
90 Degrees F
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Material
Steel
Operating Temperature Range
-65 Degrees to 150 Degrees F
Resistive Amps @ 208V AC
24 A

Description

Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 25 Degrees to 90 Degrees F, Thermostat Voltage 120 to 600VAC, Full Load Amps @ 120VAC 24A, Full Load Amps @ 240VAC 24A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 5 Degrees to 45 Degrees F, Height 4-1/16 In., Width 3-1/8 In., Depth 2-15/16 In.
