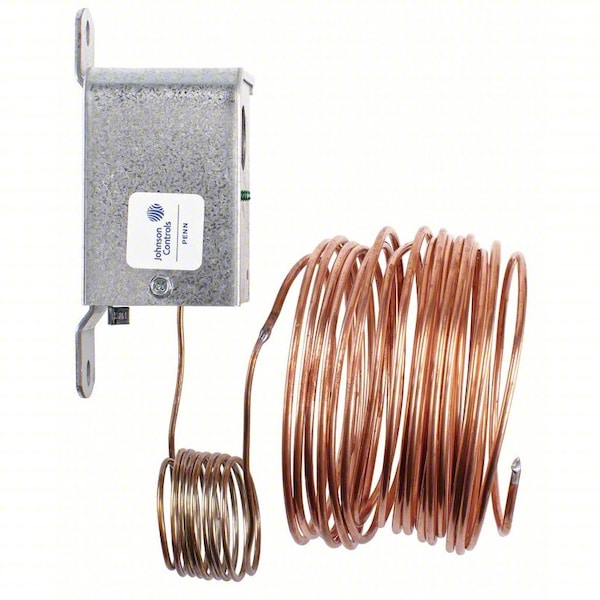

Johnson Controls Line Voltage Mechanical Thermostat, Heat or Cool, 35 to 45F, Screwdriver, 24 to 277V AC, Fixed A11B-1C - main

Line Voltage Mechanical Thermostat, Heat or Cool, 35 to 45F, Screwdriver, 24 to 277V AC, Fixed

  • Mfr # A11B-1C

  • Zoro # G5063125

product price:  $331.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Pipes, Cooling Coils, Hydronic Coils
Application
Heat or Cool
Switch Action
Close on Rise
Switch Type
SPST
Temperature Control Range
35 to 45 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A11B-1C
Zoro #
G5063125
UPC #
078502808264
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
1/8 in
Capillary Length
48 in
Overall Height
3-1/8 in
Mounting Hole Diameter
1/4 in
Bulb Length
20 ft
Overall Width
2-1/8 in
Overall Depth
2-3/8 in

Details

Compatible System Type
Pipes, Cooling Coils, Hydronic Coils
Application
Heat or Cool
Switch Action
Close on Rise
Switch Type
SPST
Temperature Control Range
35 to 45 Degrees F
Control Type
Screwdriver
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Contact Rating Resistive @ 277V
6.93 A
Inductive Amps @ 240V
8 A
Locked Rotor Amps @ 120V
96 A
Enclosure Type
Galvanized/Steel
Contact Rating Resistive @ 120V
16 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Locked Rotor Amps @ 240V
48 A
Includes
Mounting Hardware, Remote Sensing Bulb
Inductive Amps @ 208V
9.2 A
Number of Switches
1
Resistive Amps @ 208VAC
9.2 A
Contact Rating Resistive @ 240V
8 A
Standards
CSA LR948/361-E-0.2, UL SA516
Inductive Amps @ 120V
16 A
Number of Relay Outputs
1
Number of Relay Inputs
1
For Use With
Low Temperature Cut Out for Coil Protection and Pipe Liquid Sensing
Thermostat Type
Freeze Protection Indoor Single-Stage Controls
Features
Provides Monitoring of the Face Temperature of Evaporator Coils for Freeze Protection, External Temperature Scale, Easy Set Point Adjustment
Minimum Control Temperature
35 Degrees F
Changeover Type
Manual
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
0 Degrees F
Full Load Amps @ 240V AC
8 A
Number of Poles
1
Differential Type
Fixed
Contact Type
Snap Action
Temperature Differential
12 Degrees F
Enclosure NEMA Rating
1
Contact Rating
120V AC, 240V AC, 277V AC
Sensor Location
Remote
Temperature Scale
Fahrenheit/Celsius
Electrical Connection Type
Hardwired
Mounting Direction
Horizontal, Vertical
Maximum Control Temperature
45 Degrees F
Pilot Duty Rating
125 VA @ 24 to 277V AC
Full Load Amps @ 120V AC
16 A
Programming Capability
Not Programmable
Housing Material
Steel
Enclosure Color
Galvanized

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 35 Degrees to 45 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Cooling, Remote Sensing Bulb Included Yes, Switch Action Close On Rise, Number of Switches 1, Differential 8 Degrees F, Height 3-1/8 In., Width 2-1/8 In., Depth 2-3/8 In., Sensor Type Capillary

Restrictions

Hazardous material
