Shop JOHNSON CONTROLS

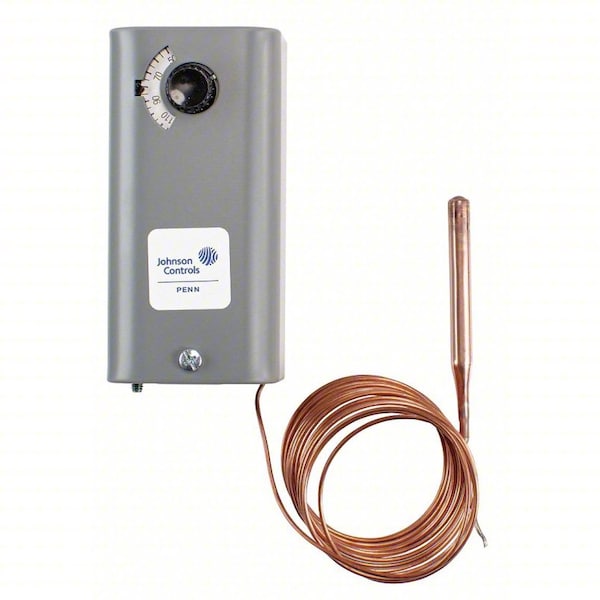

Line Voltage Mechanical Thermostat, Heat or Cool, 50 to 200F, Exposed Dial, 120 to 277V AC, 1C, 1H

  • Mfr # A19ABB-2C

  • Zoro # G7494995

product price:  $189.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open on Rise
Switch Type
SPST
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
A19ABB-2C
Zoro #
G7494995
UPC #
-
Country of Origin
Mexico

Dimensions

Capillary Length
120 in
Sensing Bulb Dia.
3/8 in
Overall Width
2-1/8 in
Overall Height
4-3/8 in
Capillary Length/Bulb Diameter
10 ft Capillary, 2 1/2 in x 3/8 in Bulb
Bulb Length
2 1/2 in
Overall Depth
1-7/8 in
Bulb Diameter
3/8 in

Details

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open on Rise
Switch Type
SPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
50 to 200 Degrees F
Control Type
Exposed Dial
Voltage
120 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Includes
Remote Sensing Bulb
Number of Switches
1
Locked Rotor Amps @ 120V
96 A
Contact Rating Resistive @ 240V
22 A
Inductive Amps @ 240V
8 A
Resistive Amps @ 208VAC
22 A
Locked Rotor Amps @ 240V
48 A
Contact Rating Resistive @ 277V
22 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Contact Rating Resistive @ 120V
22 A
Enclosure Type
Galvanized/Steel
Inductive Amps @ 120V
16 A
Inductive Amps @ 208V
9.2 A
Standards
CSA LR948/4813 02, UL E6688
Number of Relay Outputs
1
Thermostat Type
Indoor Single-Stage Controls
Number of Relay Inputs
1
For Use With
HVAC/R Applications
Temperature Differential
6 Degrees F to 24 Degrees F
Enclosure NEMA Rating
1
Minimum Operating Temperature
-35 Degrees F
Differential Type
Adjustable
Sensor Location
Remote
Temperature Sensitivity
+/-4 Degrees F
Changeover Type
Manual
Full Load Amps @ 120V AC
16 A
Minimum Control Temperature
50 Degrees F
Maximum Operating Temperature
240 Degrees F
Full Load Amps @ 240V AC
8 A
Stages
1H/1C
Number of Poles
1
Temperature Scale
Fahrenheit/Celsius
Enclosure Color
Gray
Maximum Control Temperature
200 Degrees F
Contact Rating
120V AC, 208V AC, 240V AC
Contact Type
Snap Action
Electrical Connection Type
Hardwired, Screw Terminal
Pilot Duty Rating
125 VA @ 24 to 600V AC
Housing Material
Steel
Programming Capability
Not Programmable
Resistive Amps @ 208V AC
22 A
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPST, Thermostat Control Range 50 Degrees to 200 Degrees F, Thermostat Voltage 120 to 277VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open on Rise, Number of Switches 1, Differential 6 Degrees to 24 Degrees F, Height 4-3/8 In.
