This item is Discontinued.

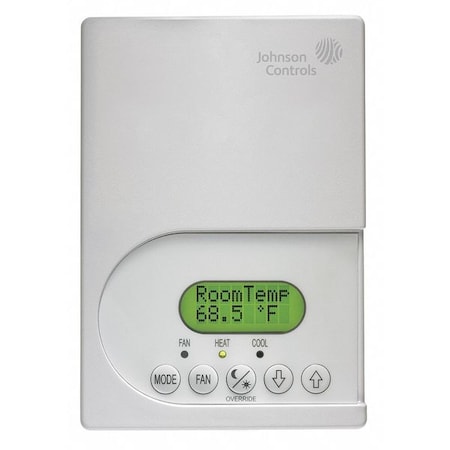

Johnson Controls Thermostat Controller, LCD, For LON System TEC2246-4

Thermostat Controller, LCD, For LON System (Discontinued)

  • Mfr # TEC2246-4
  • Zoro # G6582773
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TEC2246-4
Zoro #
G6582773
UPC #
-
Country of Origin
Canada

Dimensions

Dimensions
4-15/16 in H x 3-3/8 in W x 1-1/8 in D
Overall Width
3 3/8 in
Overall Height
4 15/16 in
Overall Depth
1 1/8 in

Details

Type
Dehumidification, Fan Control, Occupancy
Voltage
24
For Use With
LonWorks Systems
Connection
Screw Terminals
Inputs
3
Outputs
6
Features
LON
Agency Compliance
UL, C-UL, CE, C-Tick
Item
Thermostat Controller
Control Settings
1, 2, or 3 Speed
Display
LCD
Control Type
Two Outputs Proportional
Building Type
Commercial
Standards
Canada: UL Listed, File E27734, CCN XAPX7, Under CAN/CSA C22.2 No. 24, Temperature Indicating and Regulating Equipment, Europe: CE Mark, EMC Directive 2004/108/EC, United States: UL Listed, File E27734, CCN XAPX, Under UL 873, Temperature Indicating and Regulating Equipment LONMARK(R) Certification 3.4
Application
Heat and Cool
Minimum Temperature Control
40 Degrees F
Filter Change Reminder
Yes
Compatible System Type
Heat Pumps Without Aux
Control Output
Up to 10V DC Proportional Fan Coil and Zoning, Floating Fan Coil and Zoning
Temperature Scale
Fahrenheit/Celsius
Humidification/Dehumidification Control
No, Yes
Programming Capability
Binary Input, Programmable
Compatible with Building Automation Systems
Yes
Number of Pipes
2, 4
Occupancy Sensor
Compatible with Occupancy Sensor
Amperage
1 A
Lead Wire Gauge
18 ga, 22 ga
Network Protocol Compatibility
LonWorks
Sensor Location
Remote
Temperature Sensitivity
+/- 0.9 Degrees F
Switch Type
DIP
Maximum Temperature Control
100 Degrees F
Minimum Operating Temperature
32 Degrees F
Wireless
Hardwired
System Settings
Auto-Heat-Cool-Off
Terminal Designations
BI1;BI2;RS;UI3
Number of Relay Outputs
2
Temporary Temperature Hold
Yes
Operating Temperature Range
32 Degrees F to 122 Degrees F
Contact Rating
19V AC to 30V AC
Frequency
50 Hz, 60 Hz
Temperature Control Range
40 Degrees F to 90 Degrees F, 50 Degrees F to 100 Degrees F
Temperature Adjustment
Floating, On/Off
Thermostat Type
Low Voltage
Temporary Program Override
Yes
Key Pad Lockout
Yes
Humidification Control
No
Remote Control Functions
On/Off and Temperature Control
Housing Color
White
Display Type
Digital
Number of Relay Inputs/Outputs
3 / 2
Backlit Type
Motion Activated
Maximum Operating Temperature
122 Degrees F
Sensor Type
Thermistor
Backlit Screen
Yes
Temperature Limiting
Yes
Dehumidification Control
Yes
Number of Relay Inputs
3

Description

Thermostat Controller, Dehumidification, Fan Control, Occupancy, Voltage 24, Connection Screw Terminals, 3 Inputs, 6 Outputs, LCD Display, 4-15/16 In.H x 3-3/8 In.W x 1-1/8 In.D, Features LON, For Use With LON System
