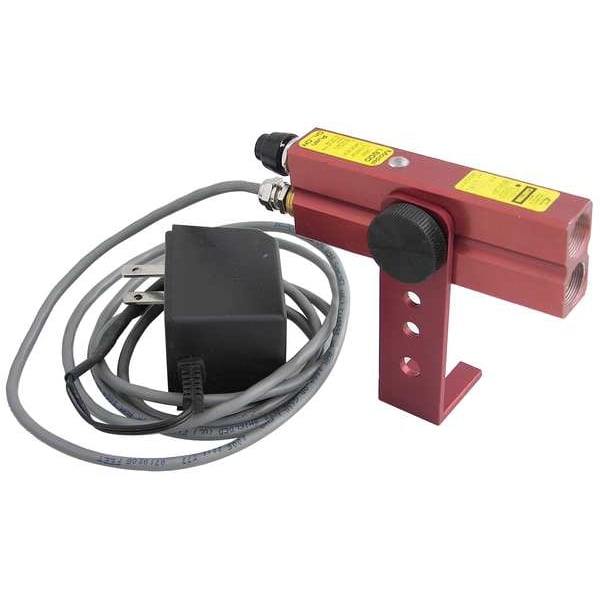

Johnson Level & Tool Cross Line Laser, Int, Red, 100 ft. 40-6230 - main

Cross Line Laser, Int, Red, 100 ft.

  • Mfr # 40-6230

  • Zoro # G0969787

product price: $679.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Manual Leveling
Number of Beams
2
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
40-6230
Zoro #
G0969787
UPC #
049448062300
Country of Origin
United States

Dimensions

Length
4 in
Height
1 3/8 in
Thread Size
1/4"-20
Width
3/4 in
Tripod Thread Size
1/4"-20
Overall Height
1 3/8 in
Overall Width
3/4 in
Overall Depth
4 in

Details

Item
Cross Line Laser
Laser Usage Environment
Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Manual Leveling
Number of Beams
2
Number of Dots
0
Number of Lines
2
Laser Color
Red
Range w/o Detector
100 ft
Number of Scanning Modes
2
Preset Angle
None
Beam Color
Red
IP Rating
IP65
Auto Shutoff
No
Accuracy
+/-1/16 in @ 10 ft
Features
Cylindrical Lens Technology - Solid Glass Optical System Draws a Continuous Line at Any Distance, Hard Anodized - Scratch Resistance Housing, Laser Diode - Rated for 10,000 Hours of Operation or 5 Years Normal Operating Condition, Line Fan Angle - 70 Degrees, Line Widths - 1/16 in, Push On/Off Switch - Turn Unit on and Off with out Having to Disconnect Power
Total Number of Vials
0
Number of Plumb Vials
0
Power Source
110V AC
Visual/Audible Indicators
Yes
Number of Level Vials
0
Number of 45 Degree Vials
0
Includes
Adapter, Bracket
Plumb Up
No
Plumb Down
No
Horizontal/Vertical
Horizontal and Vertical
Interior/Exterior
Interior
Laser Class
Class 2
Material
Aluminum
Level Indicators
Audible, Visual
Automatic Shutoff
No
Laser Output
Less Than or Equal To 1 mW
Includes Batteries
Batteries Not Included
Laser Beam Color
Red
Weight
7.5 oz
Use Location
Indoor
Number of Planes
0
Outdoor Range - Maximum
100 ft
Mount Type
Mounting Bracket
Indoor Range - Maximum
100 ft
Working Range without Detector - Maximum
100 ft
Bluetooth
Not Bluetooth Compatible
Number of 45 Vials
0

Description

The Johnson 40-6230 Cross Line Laser is the perfect tool for aligning your horizontal and vertical projects. With its cylindrical lens technology, it provides accurate measurements within +/- 1/16 in at 10 ft. The hard anodized scratch resistant housing protects the laser level from corrosion and other damages. The red beam of light is strong enough to be seen even in bright conditions. You can use this interior or exterior rotary laser level for any type of project that requires alignment, including wall studs, door jambs, plumbing fixtures, windows and more. If you want to ensure that your projects are done right the first time around, invest in a Johnson 40-6230 Cross Line Laser today.
