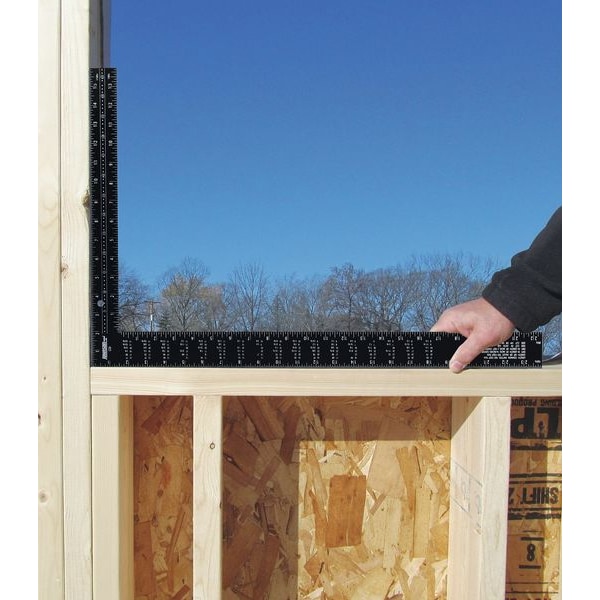

Johnson Level & Tool Square, Rafter CS7 - main

Square, Rafter

  • Mfr # CS7

  • Zoro # G0654586

product price: $23.39
/ea

Key Features

Material
Aluminum
Features
Permanently Stamped Graduations and Numbers
Finish
Anodized
Graduations
1/10 in, 1/12 in, 1/16 in, 1/8 in
Body Size
24 x 2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS7
Zoro #
G0654586
UPC #
049448277001
Country of Origin
China

Dimensions

Body Size
24 x 2 in
Tongue Size
16 x 1-1/2 in
Length - Vehicle Lighting
5 1/5 in
Width - Vehicle Lighting
2/5 in
Height - Vehicle Lighting
1 3/10 in
Thickness
0.12 in
Base Length
24 in
Blade Width
24 in
Blade Length
16 in

Details

Item
Framing Square
Material
Aluminum
Features
Permanently Stamped Graduations and Numbers
Finish
Anodized
Graduations
1/10 in, 1/12 in, 1/16 in, 1/8 in
Includes
Black Bezel, Gasket
Lens Design
Rectangular
Power Source
12/24V DC
Wiring Connection - Vehicle Lighting
Pigtail
Rating
SAE Class 1
Current Drawn
0.75A
Number of Heads
6
Housing Material
Polycarbonate
Standards
CCR Title 13, GSA KKK-A-1822, NFPA, R65, SAE J845, Class 1
Lens Material
Polycarbonate
Wide Range - Vehicle Lighting
Perimeter Light
Lighting Technology - Vehicle Lighting
LED
LED Color
Amber
Voltage - Vehicle Lighting
12 to 24V DC
Lens Color - Vehicle Lighting
Clear
Number of Flash Patterns - Vehicle Lighting
25
Mounting - Vehicle Lighting
Permanent
Flashes per Minute
Variable
Blade Material
Aluminum
Squareness Tolerance
0.00125 in
Straightness Tolerance
0.03 in
Square Type
Framing Square
Numeric Marks
Inches
Graduation Color
White
Edge Style
Square
Graduation Marks - Base
1/10 in, 1/12 in, 1/16 in
System of Measurement
SAE
Specialized Scales
Octagon
Square Color
Black
Graduation Marks - Blade
1/10 in, 1/12 in, 1/16 in
Graduation Mark Style
Etched
Base Material
Aluminum

Description

Framing Square, Base Length 24 in, Base Width Not Applicable, Blade Length 16 in, Blade Width 24 in, Blade Material Aluminum, Graduation Mark Style Etched, Graduation Marks - Base 1/10 in, 1/12 in, 1/16 in, Graduation Marks - Blade 1/10 in, 1/12 in, 1/16 in, Specialized Scales Octagon, Base Material Aluminum, System of Measurement SAE, Square Type Framing Square, Coating Not Applicable, Edge Style Square, Features Permanently Stamped Graduations and Numbers, Finish Anodized
