Mahr

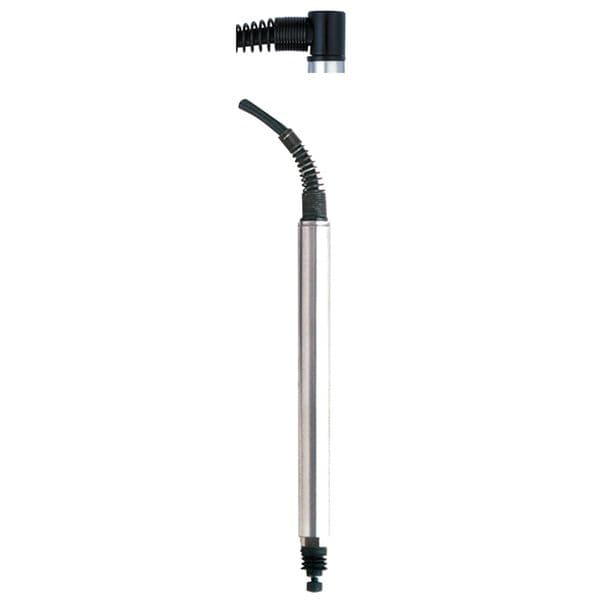

Digital Indicator Pencil Probe, For 5RHJ5

product price: $497.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series Maxum III
  • Range -0.040 to 0.040 in/-1 to 1 mm
  • Resolution 0.00005 in, 0 .0001 in, 0 .0005 in/0.0005 mm, 0.001 mm, 0.005 mm
  • Accuracy +/-0.0004 in/10 micron
  • Long Form Calibration Certificate No
See all product information

Product Information

Dimensions

Probe Length 101.6 mm
Dimension Type Inch/Metric
Cable Length 1.2 m

Details

Item Inductive Probe with Cable
Series Maxum III
Range -0.040 to 0.040 in/-1 to 1 mm
Resolution 0.00005 in, 0 .0001 in, 0 .0005 in/0.0005 mm, 0.001 mm, 0.005 mm
Accuracy +/-0.0004 in/10 micron
Long Form Calibration Certificate No
Features For Use w/No. 5RHJ5 Indicator Above 3/8 in Body Diameter
Maximum Measurement - Micrometers 1 mm
Minimum Measurement - mm -1 mm
Max. Measuring Force 1.1 N
Minimum Measurement - Inch -0.0400 in
Includes Cable Yes
Maximum Measurement - Inch 0.0400 in
Brand and Series Millimess Maxmicron m III

Description

This digital indicator pencil probe is designed to be used with the 5RHJ5 Indicator, which has a body diameter of 3/8 in. The electronic digital indicator is perfect for measuring internal and external dimensions. It features a resolution of 0.00005 in., 0.0001 in., 0.0005 in./0.0005 mm, 0.001 mm and 0.005 mm respectively. This millimeter electronic digital indicator also has a range -.0.040 to 0.040 in/-1 to 1 mm and an accuracy of +/-0.0004 in/10 micronz. For professional results when it comes to measurements, you will definitely want the Mahr 2033099 Digital Indicator Pencil Probe on hand.
