Shop JOMAR VALVE

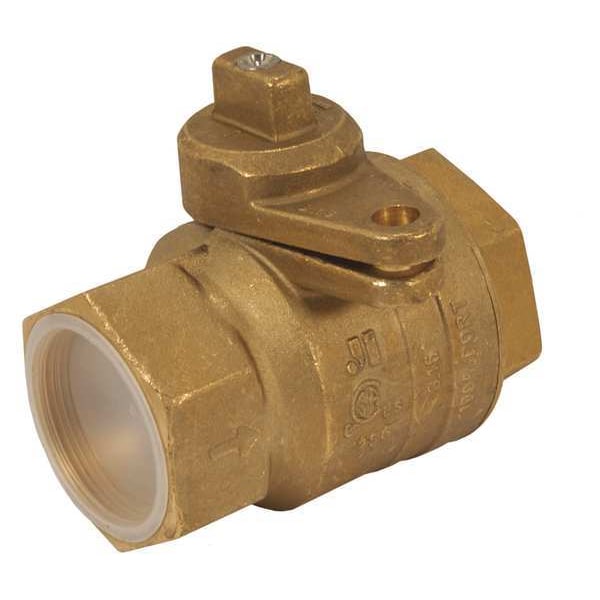

2" FNPT Brass Gas Ball Valve Inline

  • Mfr # 240-008B

  • Zoro # G9490485

product price:
$
191.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
240-008B
Zoro #
G9490485
UPC #
662527291882
Country of Origin
Italy

Dimensions

Pipe Size
2 in
Overall Length
5 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in
Handle Height
3.33 in
Handle Length
2.52 in
Ball Opening Size
1.99 in
Nominal Valve Size
2 in
Wire Rope Length
5 in
Length
5 in

Details

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Gas
Connection Type
FNPT x FNPT
Item
Gas Ball Valve
Stem Type
Blowout Resistant
Standards
CSA ANSI B16.33 (125G), CSA CGA 3.16 (125G), DOT 192, MSS SP-110
Ball Valve Product Group
Manual
Handle Type
Tee
Temp. Range
-40 Degrees to 300 Degrees F
Features
Triple Stem Seal
Seat Material
PTFE
Hose I.D.
2 in
Max. Pressure
600 PSI CWP
Stem Material
Brass
Handle Material
Brass
Body Material
Brass
Seal Material
Buna-N
Connection Type - Side 1
NPT
Maximum Pressure - Steam
0 psi
Vacuum Service Rating
29 in Hg
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-40 Degrees F
Vented Ball Valve
Non-Vented
Connection Gender - Side 2
Female
Color - Valve Handle
Brass
Coefficient of Volume (Cv)
36
Operating Temperature - Maximum
300 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Handle - Locking
Locking
Connection Gender - Side 1
Female
Valve Series
240
Valve Body Style
Straight
Valve Construction
Two-Piece
Maximum Pressure - Operating
175 psi

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Gas, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 175 psi, Maximum Pressure - Steam 0 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Tee
