Shop JONARD TOOLS

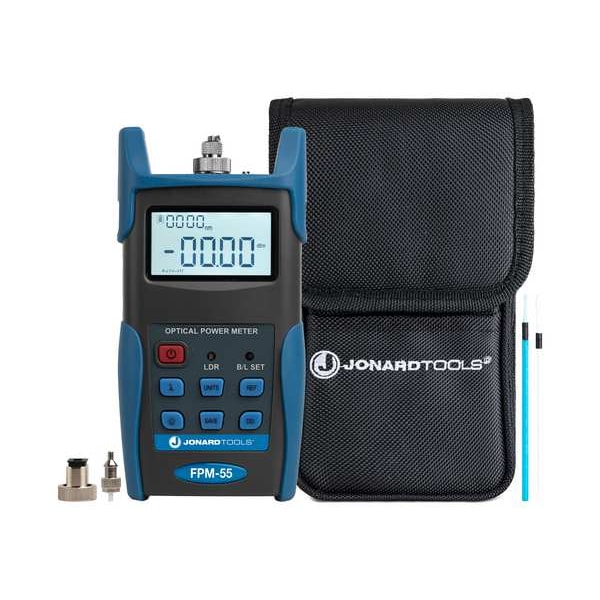

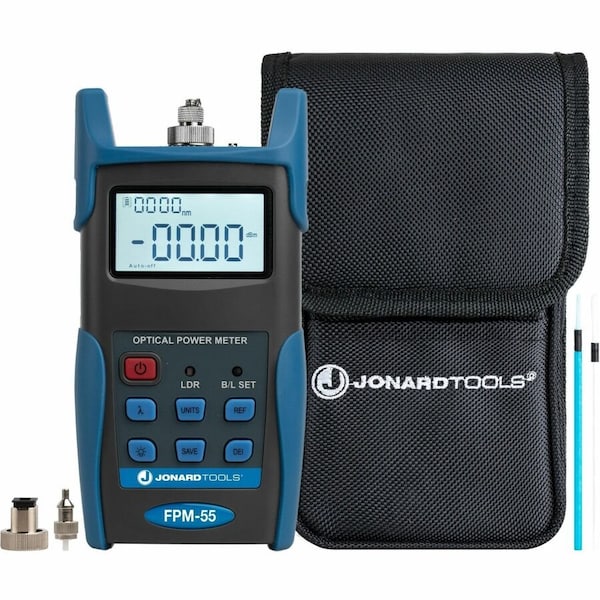

Fiber Optic Power Meter

  • Mfr # FPM-55

  • Zoro # G602203493

product price:
$
428.95
/ea
Free Shipping & Returns

Key Features

Display
LCD
Measurement Range
-50 dBm to +26 dBm
Application
Fiber Optic Cables
Measures
Absolute Optical Power, Relative Power Loss in Fiber Optic Cables, Wavelengths From 850-1650 nm
Features
Shatter-Resistant Sleeve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FPM-55
Zoro #
G602203493
UPC #
810053350416
Country of Origin
China
Item
Fiber Optic Power Meter
Display
LCD
Measurement Range
-50 dBm to +26 dBm
Application
Fiber Optic Cables
Measures
Absolute Optical Power, Relative Power Loss in Fiber Optic Cables, Wavelengths From 850-1650 nm
Features
Shatter-Resistant Sleeve
Includes
Carrying Case, FC Adapter, SC Adapter
Connector Type
FC, LC, SC
Calibration Certificate
Available Separately
Adapter Type
FC/SC/LC
Resolution
0.01 dB
Product Type
Fiber Optic Power Meter
Detector Type
InGaAs
Multi Mode Range
850, 1300 nm, ≤± 0.8 dB
Battery type
(3) AA batteries
Connector Types
FC, SC (APC/PC/UPC) & LC (PC/UPC)
Data Storage Capacity
1000 entries
Single Mode Range
980, 1310, 1490, 1550, 1625, 1650 nm, ≤± 0.25 dB
Operating Time
200 hours (without backlight)
Fiber Mode Measured
Multi-Mode, Single-Mode
Includes Batteries
Yes
Maximum Operating Temperature
140 Degrees F
Battery Chemistry
Alkaline
Adapters Included
FC, LC, SC
Fault Location Pulse Duration
1 min
CAT Safety Rating
CAT I
Minimum Operating Temperature
14 Degrees F
Backlit Digital Display
Yes
IP Rating
IP40
Auto Power Off
Yes
Display Screen Type
LCD
Number of Batteries Required
3
Alert Type
Light
Includes Software
Yes
Minimum Power Measurement
-50 dBm
Maximum Power Measurement
26 dBm
Testing Functions
Optical Power Loss, Optical Power Measuring

Description

Fiber Optic Power Meter, Calibration Certificate Available Separately, Connector Type FC, LC, SC, Adapters Included FC, LC, SC, CAT Safety Rating CAT I, Alert Type Light, Fault Location Pulse Duration 1 min, Fiber Mode Measured Multi-Mode, Single-Mode, IP Rating IP40, Product Type Fiber Optic Power Meter, Testing Functions Optical Power Loss, Optical Power Measuring, Auto Power Off Yes, Backlit Digital Display Yes, Battery Chemistry Alkaline, Battery Size AA, Display Screen Type LCD
