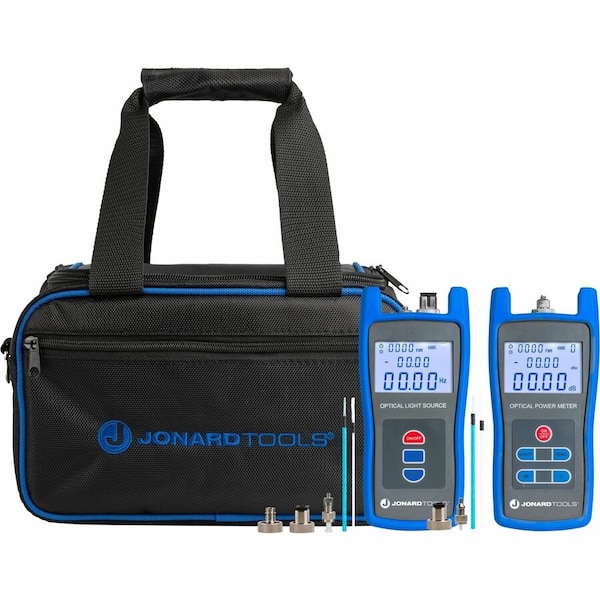

Jonard Tools Fiber Power Meter FPL-5050 - main

Fiber Power Meter

  • Mfr # FPL-5050

  • Zoro # G702203539

product price:  $624.99
/ea
Free Shipping & Returns

Key Features

Application
Fiber Optic Cable Testing
Measures
Power
Features
Has Four Different Modulation Outputs (CW, 270 Hz, 1 KHz, 2 KHz), The Fls-50 Fiber Optic Light Source to Provide Either 1,310 nm or 1,550 nm Wavelengths for a Stable Light Source for Single-Mode Fiber Measurements
Includes
(2) Cleaning Swabs, FC Adapter, LC Adapter, Carrying Case, Protective Cover, SC Adapter, Storage Pouch
Connector Type
FC, LC, SC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FPL-5050
Zoro #
G702203539
UPC #
810053350492
Country of Origin
China

Dimensions

Light Source Wavelengths
1310, 1550
Height
6.63 Inch
Power Meter Wavelengths
850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Length
11.13 Inch
Width
9.13 Inch
Battery Size
AA
Maximum Wavelength Measurement
1,650 nm
Minimum Wavelength Measurement
800 nm

Details

Item
Fiber Optic Power Meter
Application
Fiber Optic Cable Testing
Measures
Power
Features
Has Four Different Modulation Outputs (CW, 270 Hz, 1 KHz, 2 KHz), The Fls-50 Fiber Optic Light Source to Provide Either 1,310 nm or 1,550 nm Wavelengths for a Stable Light Source for Single-Mode Fiber Measurements
Includes
(2) Cleaning Swabs, FC Adapter, LC Adapter, Carrying Case, Protective Cover, SC Adapter, Storage Pouch
Connector Type
FC, LC, SC
Calibration Certificate
Available Separately
Adapter Type
FC/SC/LC
Product Type
Light Source Power Meter Kit
Connector Types
FC, SC (APC/PC/UPC) & LC (PC/UPC)
Power Measurement Range
-50 dBm to +26 dBm
Minimum Power Measurement
-50 dBm
Testing Functions
Optical Power Loss, Optical Power Measuring
IP Rating
IP40
Adapters Included
FC, LC, SC
Maximum Power Measurement
26 dBm
CAT Safety Rating
CAT I
Fiber Mode Measured
Single-Mode
Includes Batteries
Yes
Number of Batteries Required
3
Battery Chemistry
Alkaline
Alert Type
Light
Fault Location Pulse Duration
1 min

Description

Fiber Optic Power Meter, Calibration Certificate Available Separately, Connector Type FC, LC, SC, Adapters Included FC, LC, SC, CAT Safety Rating CAT I, Alert Type Light, Fault Location Pulse Duration 1 min, Fiber Mode Measured Single-Mode, IP Rating IP40, Product Type Light Source Power Meter Kit, Testing Functions Optical Power Loss, Optical Power Measuring, Battery Chemistry Alkaline, Battery Size AA
