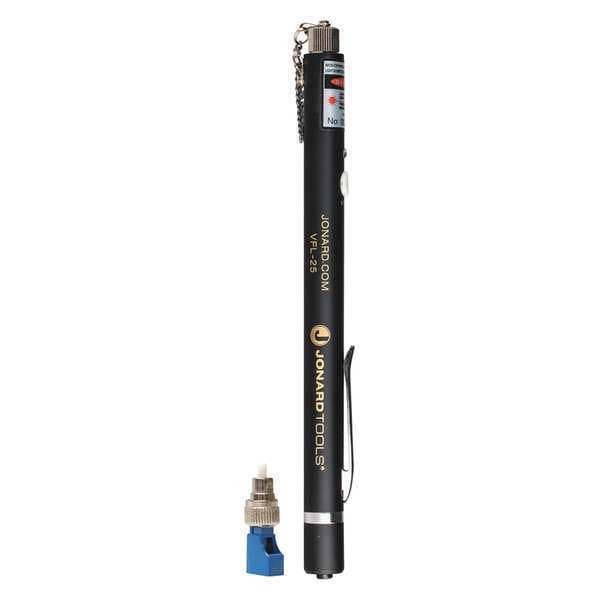

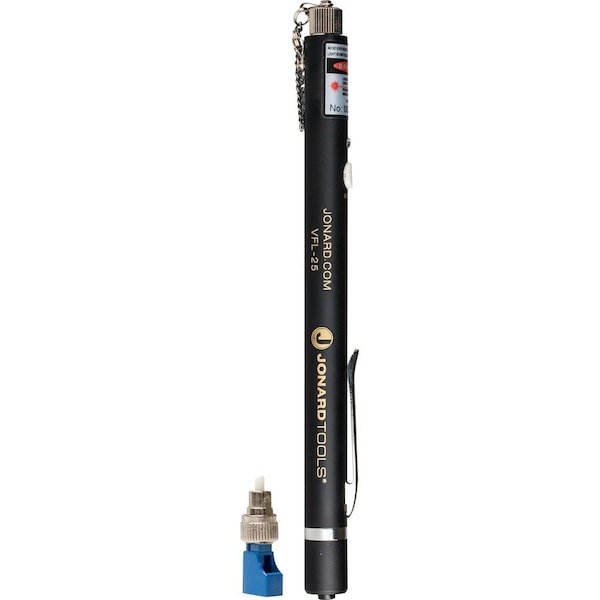

Visual Fault Locator Kit, FC/LC

product price: $164.95
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Fiber Tracing, Fiber Routing, Continuity Testing and to Locate Breakpoints with Bending and Cracking of the Fiber
  • For Use With Fiber Optic Cables
  • Features Operates in Either CW (Continuous Wave) or Pulsed Mode
  • Connector Type FC, LC, SC, ST
  • Includes (2) AAA Batteries, FC/LC Adapter, Visual Fault Locator
See all product information

Product Information

Dimensions

Length 1.87 Inch
Height 0.87 Inch
Width 7.5 Inch
Wavelength 650 nm
Battery Size AAA
Maximum Wavelength Measurement 650 nm

Details

Item Visual Fault Locator Kit
Application Fiber Tracing, Fiber Routing, Continuity Testing and to Locate Breakpoints with Bending and Cracking of the Fiber
For Use With Fiber Optic Cables
Features Operates in Either CW (Continuous Wave) or Pulsed Mode
Connector Type FC, LC, SC, ST
Includes (2) AAA Batteries, FC/LC Adapter, Visual Fault Locator
Adapter Type FC/LC
Calibration Certificate Available Separately
Product Type Visual Fault Locator
Fiber Connector FC, SC, ST & LC
Power 2 AAA Batteries
Battery life 60 hours
Working Temperature -4°F to 140°F (-20°C to 60°C)
Light source Class IIIA Laser Diode
Storage Temperature -40°F to 185°F (-40°C to 85°C)
Distance Up to 5 km (3.10 miles)
Maximum Operating Temperature 140 Degrees F
IP Rating IP40
Fault Location Pulse Duration 1 min
Testing Functions Fiber Tracing
CAT Safety Rating CAT I
Minimum Operating Temperature -4 Degrees F
Alert Type Light
Includes Batteries Yes
Battery Chemistry Alkaline
Fiber Mode Measured Multi-Mode, Single-Mode
Number of Batteries Required 2
Adapters Included FC, LC

Description

Visual Fault Locator Kit, Calibration Certificate Available Separately, Connector Type FC, LC, SC, ST, Adapters Included FC, LC, CAT Safety Rating CAT I, Alert Type Light, Fault Location Pulse Duration 1 min, Fiber Mode Measured Multi-Mode, Single-Mode, IP Rating IP40, Product Type Visual Fault Locator, Testing Functions Fiber Tracing, Battery Chemistry Alkaline, Battery Size AAA, Features Operates in Either CW (Continuous Wave) or Pulsed Mode
