J.W. Speaker

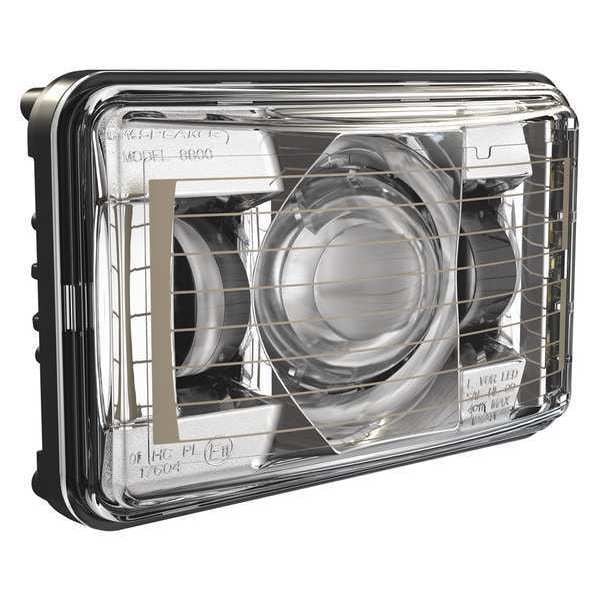

High Beam Heated Headlight, LED Type

product price: $267.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lens Shape - Vehicle Lighting Rectangular
  • Mounting Type Recessed
  • Material polycarbonate
  • Sub-Category Headlights
  • Width 6-1/2"
See all product information

Product Information

Dimensions

Width 6-1/2"
Height - Vehicle Lighting 4 1/4 in
Depth 4"
Height 4"
Width - Vehicle Lighting 3 1/4 in
Length - Vehicle Lighting 6 1/2 in
Overall Width 6 5/8 in
Overall Height 4 1/4 in
Overall Depth 3 3/8 in

Details

Lens Shape - Vehicle Lighting Rectangular
Mounting Type Recessed
Material polycarbonate
Sub-Category Headlights
Lens Color Clear
Standards DOT Compliant, ECE, NCAP
Lamp Life 40,000 hr
Wiring Connection - Vehicle Lighting Hardwired
Post No
Used For Cars, Trucks, Vans
Shape Rectangular
Housing Color Black
Fits Car, Trailer, Truck, Van
Mounting - Vehicle Lighting Permanent
Type Led
Lighting Technology - Vehicle Lighting LED
Item Headlight
Current Rating 2.25 A
Volt Bulb 10 to 32V
Color Chrome
Lamp Type Led
Lens Material Polycarbonate
Lumens - Vehicle Lighting 2,250 lm
Housing Material Aluminum
Features Drop-In Replacements for Typical Buckets/Panels used in Heavy-Duty Trucks
Termination Type Pigtail
Lighting Technology LED
Minimum Brightness 898 lm
Electrical Connection H4 Connector
Mount Type Low-Profile Panel Mount
Beam Type High Beam
Peak Beam Intensity 73,200 cd
Maximum Brightness 2,250 lm
Vehicle Side Universal
Maximum Operating Temperature 149 Degrees F
Includes Electrical Connection Electrical Connection Included
IP Rating IP69K
Current 1.67 A @ 24V DC, 3.30 A @ 12V DC
Series 8800 Evolution 2
Heated Heated
Mount Style Recessed
Installation Type Permanent
Minimum Operating Temperature -40 Degrees F
Light Type Headlight
Compatible Electrical Connection Manufacturer Model Number 3269601, 3269611, 8000381

Description

Headlight, Light Type Headlight, Lighting Technology LED, Heated Heated, Vehicle Class Not Applicable, Vehicle Side Universal, Beam Type High Beam, Mount Style Recessed, Includes Electrical Connection Electrical Connection Included, Mount Type Low-Profile Panel Mount, Electrical Connection H4 Connector, Shape Rectangular, Number of Bulbs Not Applicable, Overall Height 4 1/4 in, Overall Width 6 5/8 in, Overall Depth 3 3/8 in, Housing Material Aluminum, IP Rating IP69K, Series 8800 Evolution 2
