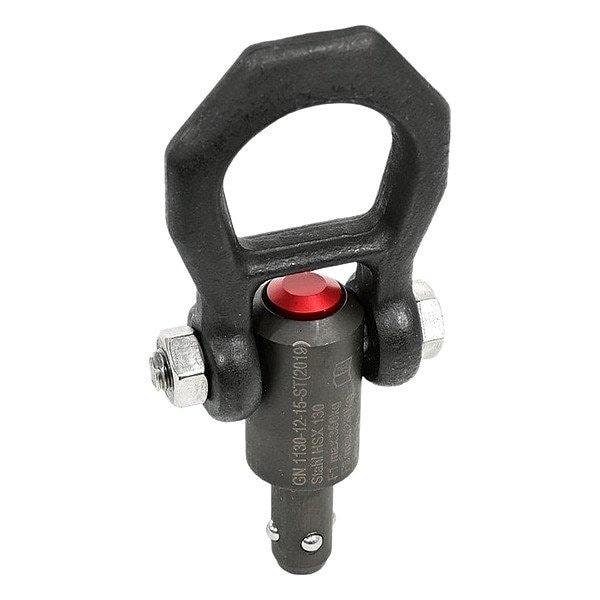

GN1130-8-35-ST LIFTING PIN STEEL
Mfr # 1130-8-35-ST
Zoro # G412473031
product price:Â
$
226.99
/ea
Free Shipping & Returns
Key Features
Series
GN 1130
Standards
RoHS Compliant
Pivot Angle
180 Degrees
Operation
Lifting
Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1130-8-35-ST
- Zoro #
- G412473031
- UPC #
- 664423330573
- Country of Origin
- Germany
Dimensions
- Bail Inside Width
- 1 1/8 in
- Overall Length
- 5 1/8 in
- Overall Width
- 1 7/8 in
- Bail Thickness
- 3/8 in
- Bail Inside Length
- 1 in
- Pin Diameter
- 8 mm
- Wire Rope Length
- 5 1/8 in
- Length
- 5 1/8 in
Details
- Item
- Quick-Release Hoist Ring
- Series
- GN 1130
- Standards
- RoHS Compliant
- Pivot Angle
- 180 Degrees
- Operation
- Lifting
- Material
- Steel
- Movement Type
- Pivot, Swiveling Pin
- Mounting Orientation
- Top and Side
- Color
- Red
- Nominal Force
- 337 lbf
- Working Load Limit - Side Load
- 0.5 kN (112 lbf)
- Maximum Operating Temperature
- 482 Degrees F
- Includes Visual Tension Indicator
- Visual Tension Indicator Not Included
- Minimum Operating Temperature
- -4 Degrees F
- Mount Type
- Quick-Release
Description
Quick-Release Hoist Ring, Movement Type Pivot, Swiveling Pin, Material Steel, Mount Type Quick-Release, Operation Lifting, Pivot Angle 180 Degrees , Bail Inside Length 1 in, Bail Inside Width 1 1/8 in, Bail Thickness 3/8 in, Overall Length 5 1/8 in, Overall Width 1 7/8 in, Minimum Operating Temperature -4 Degrees F, Maximum Operating Temperature 482 Degrees F, Color Red, Standards RoHS Compliant, Series GN 1130
