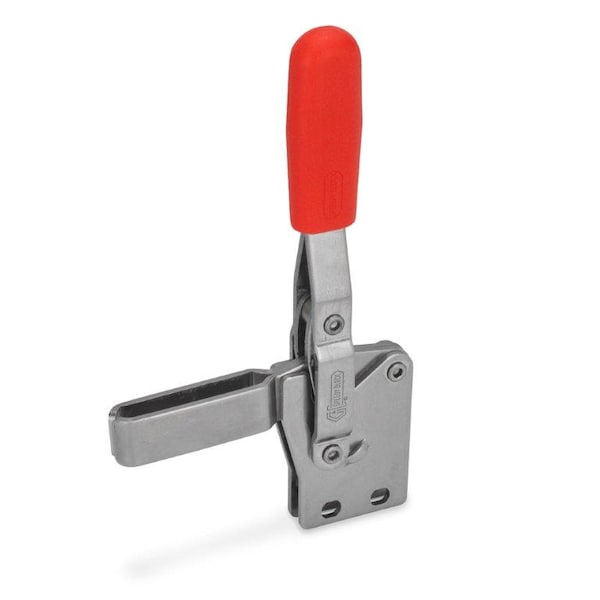

GN810.1-75-B-NI Vertical Toggle Clamp
Mfr # 810.1-75-B-NI
Zoro # G4699618
product price:Â
$
32.59
/ea
Key Features
Thread Size
M5
Overall Length
2.62 in
Finish
Matte
Overall Height
4.29 in
U-Bar Arm Length
1.24 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 810.1-75-B-NI
- Zoro #
- G4699618
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Thread Size
- M5
- Overall Length
- 2.62 in
- Overall Height
- 4.29 in
- U-Bar Arm Length
- 1.24 in
- Plate Length
- 1.14 in
Details
- Finish
- Matte
- Grip Material
- Plastic
- Holding Force
- 750 N
- Clamp Material
- Stainless Steel
- Type
- U-bar, two washers
- Spindle Material
- Stainless Steel
- Mounting Distance
- 0.59 in to 0.63 in
Description
GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC. Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.
