Shop J.W. WINCO

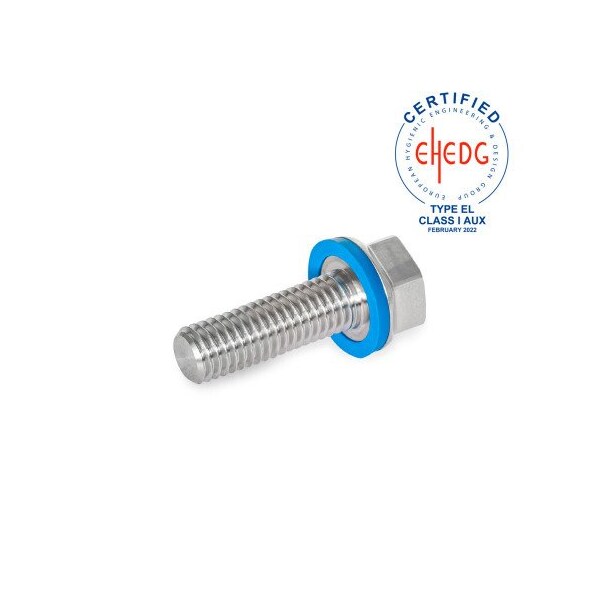

Hygienic Hex Head Bolt

  • Mfr # 1581-10X24-1.00-MT-E

  • Zoro # G422903788

product price:  $18.15
/ea

Key Features

Nut Standards
N/A - No Nut
O-Ring Temperature - Minimum
-40 Degrees F
Drive Type
Socket
O-Ring Temperature - Maximum
248 Degrees F
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1581-10X24-1.00-MT-E
Zoro #
G422903788
UPC #
664423635739
Country of Origin
Germany

Dimensions

Grip Size
1/4 in
Head Height
9/32 in
Head Width
5/16 in
Screw Size
#10
Minimum Thread Length
3/4 in
Drive Size
5/16 in
Overall Length
1 9/32 in
Washer Outside Diameter
29/64 in
Fastener Length
1 in
Thread Size
#10-24

Details

Nut Standards
N/A - No Nut
O-Ring Temperature - Minimum
-40 Degrees F
Drive Type
Socket
O-Ring Temperature - Maximum
248 Degrees F
System of Measurement
Inch
Thread Style
Partially Threaded
For Use in Systems
Hygiene Areas
Includes Nut
No
Temperature - Maximum
248 Degrees F
Type
Hex Head Cap Screw
Thread Fit
6g
Washer Type
Sealing
Washer Standards
FDA Compliant
Temperature - Minimum
-40 Degrees F
Features
Low-Profile Head, The High Quality Finish as Well as the Large Corner Radii and Closed Surfaces Prevent Adherence of Dirt and Facilitate Cleaning, The Sealed Mounting Surface Enables Components to be Mounted without Dead Spaces
Resistance Properties
Corrosion-Resistant
Thread Direction
Right Hand
Material
Stainless Steel
Material Grade/Class
316L
Tensile Strength
500 N/sq mm
Includes Washer
Yes
Rockwell Hardness
N/A Not Hardened
Thread Type
Coarse
Item
Hygienic Flanged Hex Head Bolt W/ Washer

Description

Hygienic Flanged Hex Head Bolt W/ Washer, System of Measurement Inch, Fastener Length 1 in, Head Height 9/32 in, Head Width 5/16 in
