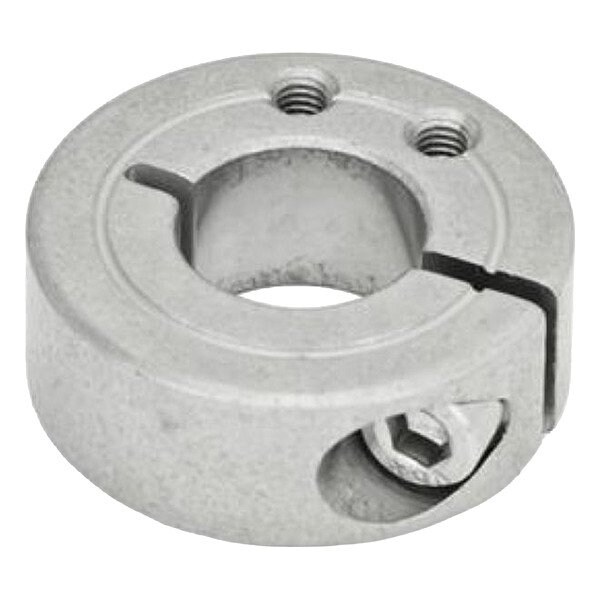

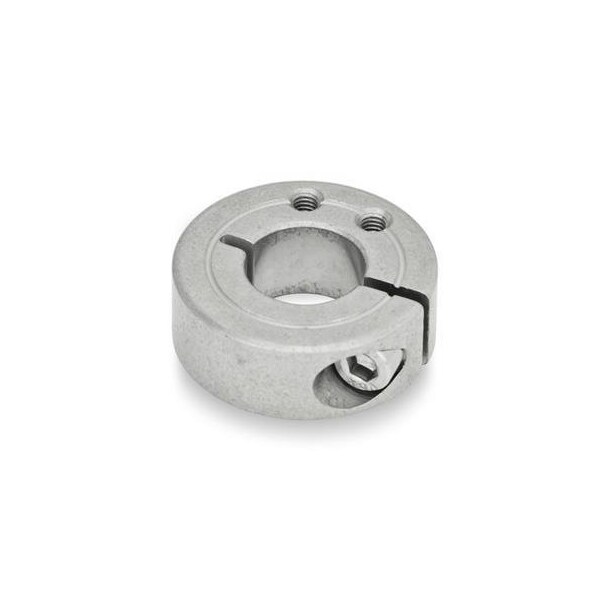

One-Piece Shaft Collars
- Mfr # 7062.1-55-B28-NI-B
- Zoro # G722730886
product price:Â
$
82.25
/ea
Key Features
Lever Part Number
311-45-M6-18-SW
Standards
AISI, DIN 912 Screw, RoHS Compliant
Screw Thread Size
M6
Collar Construction
1-Piece
Bore Type
Round
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7062.1-55-B28-NI-B
- Zoro #
- G722730886
- UPC #
- 664423634145
- Country of Origin
- Germany
- Lever Part Number
- 311-45-M6-18-SW
- Standards
- AISI, DIN 912 Screw, RoHS Compliant
- Collar Construction
- 1-Piece
- Bore Type
- Round
- Shaft Locking Type
- Clamp-On
- Center to Lever Top
- 36 mm
- Screw Material
- Stainless Steel
- Thread Direction
- Right Hand Thread
- Screw Material Grade
- 304
- Shaft Tolerance
- H10
- Item
- Shaft Collar
- Included Screws
- Socket Cap Screw
- Component Mount Type
- Face Mount Holes
- Collar Material
- Stainless Steel
- Screw Location from Center
- 18.7 mm
- System of Measurement
- Metric
- Collar Material Grade
- 316L
- Bore Tolerance
- H10
Dimensions
- Screw Thread Size
- M6
- Width Tolerance
- +/-0.2 mm
- Clearance Diameter
- 55 mm
- For Shaft Diameter
- 28 mm
- Bore Thread Size
- M6x1.00
- Collar Width
- 15 mm
- Collar Outside Diameter
- 55 mm
- Mount Hole Thread Size
- M5
- Bore Diameter
- 28 mm
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 28 mm, Bore Thread Size M6x1.00, Collar Outside Diameter 55 mm, Inside Height to Flat Not Applicable, Clearance Diameter 55 mm, Collar Width 15 mm, Collar Material Stainless Steel, Collar Material Grade 316L, Thread Direction Right Hand Thread, Center to Lever Top 36 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Bore Tolerance H10, Bore Width Not Applicable, Screw Thread Size M6
