  11. Vibration-Isolating Mount, 0.59 in H

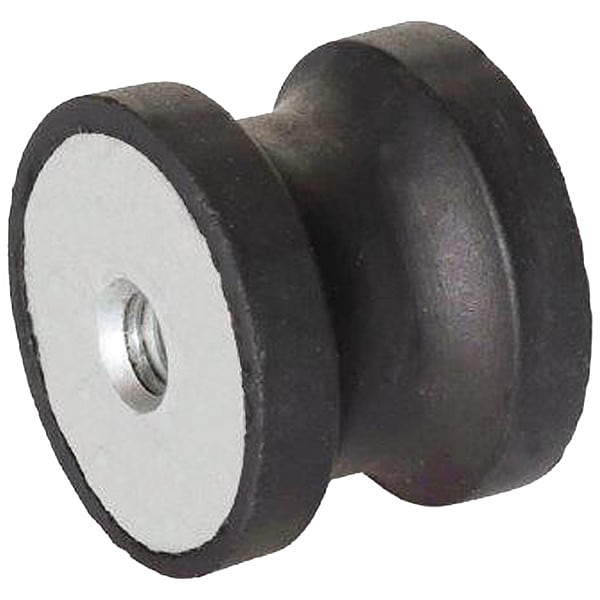

J.W. Winco Vibration-Isolating Mount, 0.59 in H 456.3-20-15-14-1/4-55 - main

Vibration-Isolating Mount, 0.59 in H

  • Mfr # 456.3-20-15-14-1/4-55

  • Zoro # G408259106

product price: $7.29
/ea
Sold in multiples of 2 for $14.58

Key Features

Height
0.59 in
Thread Size
1/4"-20
Mounting
Compressor; Pump
Resistant To
Abrasion; Wear
Durometer
55A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
456.3-20-15-14-1/4-55
Zoro #
G408259106
UPC #
-
Country of Origin
Hungary

Dimensions

Height
0.59 in
Thread Size
1/4"-20
Taper Diameter
0.55 in
Tap Depth
15/64 in
Overall Diameter
0.79 in
Overall Height
0.59 in

Details

Item
Vibration-Isolating Mount
Mounting
Compressor; Pump
Resistant To
Abrasion; Wear
Durometer
55A
Maximum Load Downward Compression
64 lbf
Stud or Tap Material
304 Stainless Steel
Maximum Operating Temperature
176 Degrees F
Isolator Material
Natural Rubber
Vibration Isolator Style
Two Tapped Holes
Maximum Load Sideways Shear
440 lbf
Shape
Hourglass
Load Sideways Shear - Maximum
441 lbf
Mounting Style
Compression
FDA Approved
Not FDA Approved
Operating Temperature - Maximum
176 Degrees F
Load Downward Compression - Maximum
65.19 lbf
Operating Temperature - Minimum
-40 Degrees F

Description

Vibration-Isolating Mount, Vibration Isolator Style Two Tapped Holes, Maximum Load Downward Compression 64 lbf, Overall Diameter 0.79 in, Height 0.59 in, Stud Length Not Applicable, Maximum Load Sideways Shear 440 lbf, Thread Size 1/4 In.-20, Durometer 55A, Isolator Material Natural Rubber, Maximum Operating Temperature 176 Degrees F, Mounting Compressor; Pump, Resistant To Abrasion; Wear, Shape Hourglass, Stud or Tap Material 304 Stainless Steel, Tap Depth 15/64 in, Taper Diameter 0.55 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
