  15. Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, Indoor/Outdoor, Steel

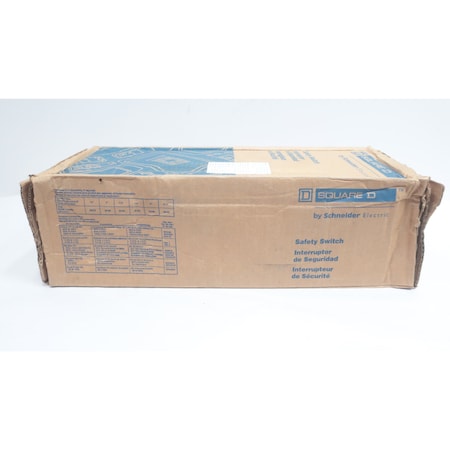

Schneider Electric Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, Indoor/Outdoor, Steel VHU363RB - main

CAD Drawings

Download CAD Files

Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, Indoor/Outdoor, Steel

  • Mfr # VHU363RB

  • Zoro # G409691370

CAD Available
product price: $882.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VHU363RB
Zoro #
G409691370
UPC #
3606485894805
Country of Origin
United States

Dimensions

Depth
7 in
Width
9 1/8 in
Height
22 1/8 in
Maximum Enclosure Depth
7.04 in

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
100 HP
Voltage
600 V
Handle Color
Black/Red
Housing Material
Steel
Standards
UL Listed file E2875
Includes
Dual Cover Interlock
Number of Wires
3
Duty
Heavy Duty
Neutral Assembly Included
No
Amps
100 A
IP Rating
IP14
Number of Poles
3
Horsepower @ 480V AC
75 hp
Number of Mounting Holes
4
Horsepower @ 240V AC
40 hp
Features
Quick Make/Break Operating Mechanism, Viewing Window
Mounting Style
Surface Mount
Series
F
NEMA Enclosure Rating
3R
Fuse Kit (Class R)
Mfr. No. RFK10
Horsepower @ 600V AC
100 hp
Compatible with Manufacturer Model Number
RFK10
Number of Locks
2
Includes Interlocked Receptacle
Yes
Compatible Manufacturer Part Number
RFK10
Compatible Manufacturer Model Number
RFK10
For Use With Mfr. Model Number
RFK10
Electrical Connection
lugs
Wiring Configuration
3-wire
Series Name
heavy duty
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Device Application
heavy application
Disconnector Device Type
non-fusible disconnect
Device Composition
field installed kit available
Device Mounting
surface
Product Or Component Type
Single Throw Safety Switch
Tightening Torque
50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Product Certifications
UL listed file E2875
Compatible with Manufacturer Model No.
RFK10
Compatible with Mfr. Model No.
RFK10
For Use with Mfr Model Number
RFK10
Compatible Pump Manufacturer Part Number
RFK10
Compatible Mfr. Model Number
RFK10
CAD Available
Yes

Description

Safety Switch, Compatible Manufacturer Model Number RFK10, Contact Form 3PST, Current Rating 100 A, Depth 7 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Not Applicable, Fuse Kit (Class R) Mfr. No. RFK10, Handle Color Black/Red, Height 22 1/8 in, Horsepower @ 240V AC 40 hp, Horsepower @ 480V AC 75 hp, Horsepower @ 600V AC 100 hp, Housing Material Galvannealed Steel
