  6. Kingpinless Plate Caster, Swivel, Rubber, 5 in, 440 lb

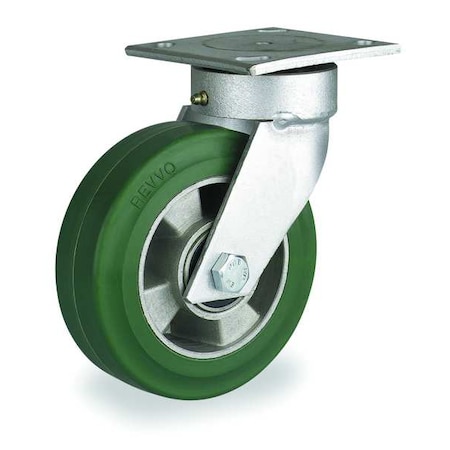

Zoro Select Kingpinless Plate Caster, Swivel, Rubber, 5 in, 440 lb TSK 125 GR2H - main

Kingpinless Plate Caster, Swivel, Rubber, 5 in, 440 lb

  • Mfr # TSK 125 GR2H

  • Zoro # G1551216

product price:  $86.19
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Rubber
Wheel Dia.
5 in
Wheel Width
1 5/8 in
Load Rating
440 lb
Wheel Bearing Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TSK 125 GR2H
Zoro #
G1551216
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Dia.
5 in
Wheel Width
1 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Mounting Height
6 1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
12 mm
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
42 mm
Mounting Plate Width
4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Load Rating
440 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
70 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Thread Guards
No
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. 125 GR2H
Extended Lead
No
Caster Brake Included
No
Standards
ANSI ICWM
Application
Kingpinless Casters
Non-Marking
No
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Includes
Top Grease Seal
Wheel Color
Green
Caster Brake Type
No Brake
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Wheel Core Material
Aluminum
Compatible With
125 GR2H
Load Capacity - Maximum
440 lb
Mounting Hole Type
Slot
For Surface Type
Ceramic, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature Range
-40 Degrees to 158 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
155 Degrees F

Description

Swivel, Plate Caster, Load Rating 440 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 5/8 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
