  11. Swivel Plate Caster, Therm Rubber, 5 in, 145 lb
Shop All Plate Casters
Zoro Select

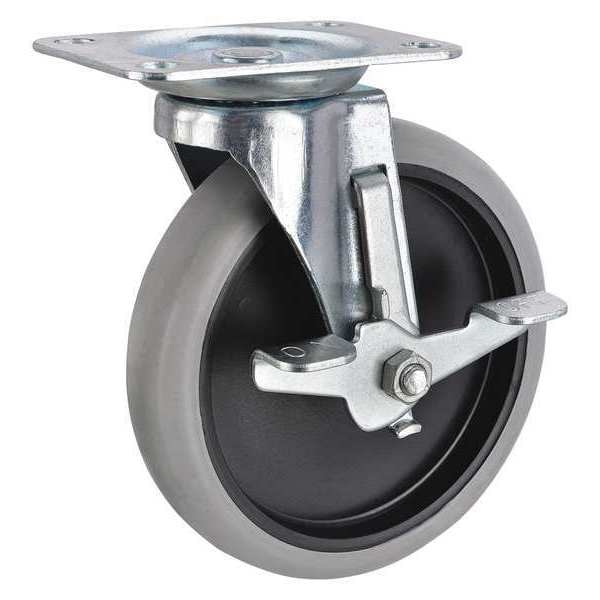

Swivel Plate Caster, Therm Rubber, 5 in, 145 lb

original price: $12.73
11% off
new price: $11.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 6-3/16 in
Wheel Dia. 5 in
Wheel Width 1-1/4 in
Stem Dia. No Stem
Caster Plate Size 2-1/2 in x 3-5/8 in
Plate Size 2-3/4" x 3-3/4"
Mounting Bolt Dia. 5/16 in
Mounting Height 6 3/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in
Swivel Radius 4 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 145 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Thickness 0.118 in
Caster Raceway Double Ball
Features Corrosion Resistant
Caster Product Group Swivel Caster With Brake
Durometer 75 Shore A
Caster Wheel Bearings Plain
Frame Material Steel
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Thread Guards No
Caster Plate Hole Pattern D
Caster Swivel Lock Type No Lock Included
Caster Brake Type Side Pedal Brake
Plate Thickness 3/32"
Core Color Gray
Frame Finish Zinc Plated
Caster Frame Material Steel
Standards RoHS, ICWM, NSF
Plate Caster Bolt Hole Pattern D
Wheel Color Gray
Caster Temp. Range Available No
Item Swivel Expanding Stem Caster With Brake
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Caster Core Material Polyolefin
Non-Marking Yes
Tread Standard
System of Measurement Inch
Application Retail, Industrial, Commercial
Replacement Wheel Mfr. No. P-PRP-050x013/038G
Includes Strap Type Brake
Tread Color Gray
Caster Temp. Range -4 Degrees To 140 Degrees F
Caster Mounting Type Plate
Swivel Lock Type No Lock Included
Includes Thread Guards No
Wheel/Tread Hardness 85-95 Shore A
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Firm
Tread Shape Standard
Wheel Core Material Polypropylene
Mounting Plate Bolt Hole Pattern C
Swivel Raceway Type Double Ball
Number of Mounting Holes 4
Wheel/Tread Material Rubber
Wheel Bearing Type Plain
Wheel/Tread Color Gray
Extended Lead No
Caster Break Type Strap Type Brake
Resistant To High Chemical Resistance To Many Aggressive Substances
Series P12 Series
ESD Conductive No
Load Capacity 325 lb

Description

Swivel, Standard Plate Caster, Load Rating 145 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Plastic, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard
