Shop KECKLEY

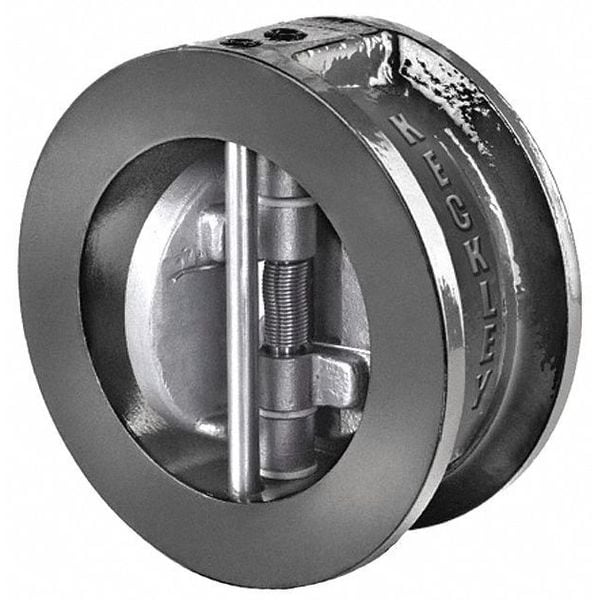

2" Cast Iron Wafer Check Valve

  • Mfr # DD1F-CI-34136-200

  • Zoro # G1612129

product price:
$
147.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
Flanged
Body Material
Cast Iron
Sub-Category
Check Valve
Width
4 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DD1F-CI-34136-200
Zoro #
G1612129
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
2"
Width
4 1/8 in
Overall Height
2 1/8 in
Pipe or Tube Size - Check Valves
2 in
Length
2 1/8 in
Size
2"
Overall Length
2.13 in
Pipe or Tube Size
2 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in
Nominal Valve Size
2 in
Wire Rope Length
2.13 in

Details

Connection Type
Flanged
Body Material
Cast Iron
Sub-Category
Check Valve
Spring Material
316 Stainless Steel
Body Material - Valves
Cast Iron
Max. Steam Pressure - Valves
Not Rated
Item - Check Valves
Check Valve
Cracking Pressure
1.05 psi
Spring Material - Check Valves
316 Stainless Steel
Mechanism and Body Design
Inline Wafer
Item
Check Valve
Standards
ASME B16.1, Conform to API 594 & 6D, MSS SP-25, MSS SP-55, MSS SP-6, Testing API 598
Flow - Valves
48.0 gpm
Max. Temp. - Valves
150 Degrees F
Connection Type - Check Valves
Flanged Wafer x Flanged Wafer
Seat Material
Buna N
Material of Construction
cast iron
Seat Material - Check Valves
Buna-N
Max. Pressure
200 psi @ 150 Degrees F
Compliance
ASME B16.1, API 598, Conforms to API 594 and 6D, MSS SP-6, MSS SP-25, MSS SP-55
Application - Valves
Process Piping
Flow Design
Single
Cracking Pressure - Check Valves
1.046 psi
Mounting Position
Vertical or Horizontal
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Water Pressure - Valves
200 psi @ 150 Degrees F
Max. Water Pressure
200 psi @ 150 Degrees F
Max. Temp.
150 Degrees F
Seal Material - Check Valves
Buna-N
Seal Material
Buna-N
Flow
48 gpm
Mounting Orientation
Horizontal, Vertical
Vacuum Service Rating
Not Rated
Check Mechanism Material
304 Stainless Steel
Check Mechanism
Double Disc
For Media
Gas, Liquids
Connection Type - Side 1
Wafer
Maximum Pressure - Operating
200 psi
Connection Type - Side 2
Wafer
Valve Body Style
Inline
Coefficient of Volume (Cv)
48
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Silent Check
Standard
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
250 Degrees F
Valve Series
DD

Description

KECKLEY DD1F-CI-34136-200 is a 2 in cast iron wafer check valve with a double disc check mechanism for process piping systems handling gas and liquids. This valve is configured for one-direction flow and reverse-flow checking. Its inline wafer body design supports horizontal or vertical mounting, with a 48 gpm flow rating and 1.046 psi cracking pressure.

Key Features:

  • 2 in nominal valve size with wafer connections on both sides
  • Cast iron body with 304 stainless steel check mechanism
  • Double disc check mechanism in an inline wafer body style
  • Buna-N seal and seat materials
  • 316 stainless steel spring material
  • Maximum water pressure: 200 psi at 150 degrees F
  • Mounting orientation: horizontal or vertical
  • Flow rating: 48 gpm; Cv: 48
  • Compliance: Meets multiple ASME, API, and MSS standards
