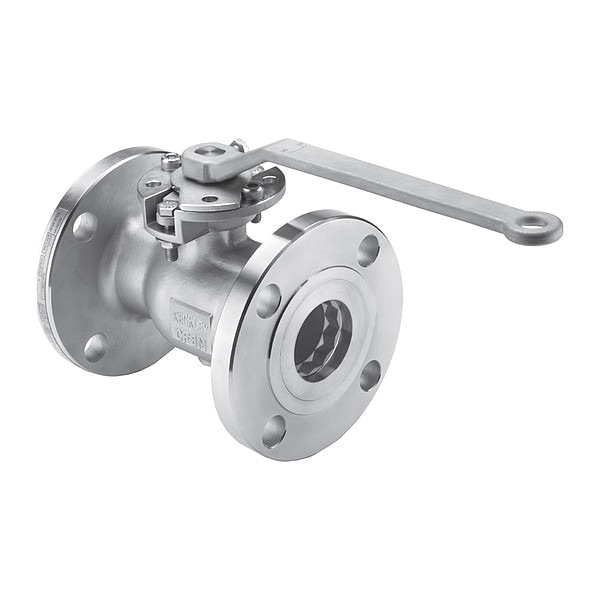

2" Flanged Stainless Steel Ball Valve Inline

  • Mfr # BVF1RF2RSSRGSL-200

  • Zoro # G1613556

product price:
$
607.99
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

Ball Material
316 Stainless Steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BVF1RF2RSSRGSL-200
Zoro #
G1613556
UPC #
-
Country of Origin
United States
Ball Material
316 Stainless Steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Combustible Gases
Connection Type
Flanged x Flanged
Item
Ball Valve
Max. Pressure
275 PSI CWP
Features
ISO Mounting Pad
Seat Material
PTFE
Ball Valve Product Group
Manual
Body Material
316 Stainless Steel
Compliance
API 607 6th Edition Fire-Safe, API 608, ASME B16.34, NACE MR0175
Standards
API 607, API 608, ASME B16.34, NACE MR0175
Handle Material
Stainless Steel
Temp. Range
-50 Degrees to 500 Degrees F
Handle Type
Lever
Stem Material
316 Stainless Steel
Stem Type
Blowout Resistant
Seal Material
Graphite
Operating Temperature - Maximum
500 Degrees F
Connection Type - Side 1
Flange
Connection Type - Side 2
Flange
Operating Temperature - Minimum
-50 Degrees F
Included Mounting
Actuator Mounting Pad
Coefficient of Volume (Cv)
145
Handle - Locking
Locking
3-A Standard Compliance
Not Rated
ANSI Flange Class
Class 150
Vented Ball Valve
Non-Vented
Vacuum Service Rating
-29.912 in Hg
Maximum Pressure - Combustible Gas
Not Rated
Maximum Pressure - Steam
195 psi
Color - Valve Handle
Red
Valve Series
BVF1
Valve Construction
One-Piece
Maximum Pressure - Operating
275 psi
Valve Body Style
Straight

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Combustible Gases, Valve Construction One-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 275 psi, Maximum Pressure - Steam 195 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.912 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Standard Port, Handle - Locking Locking
