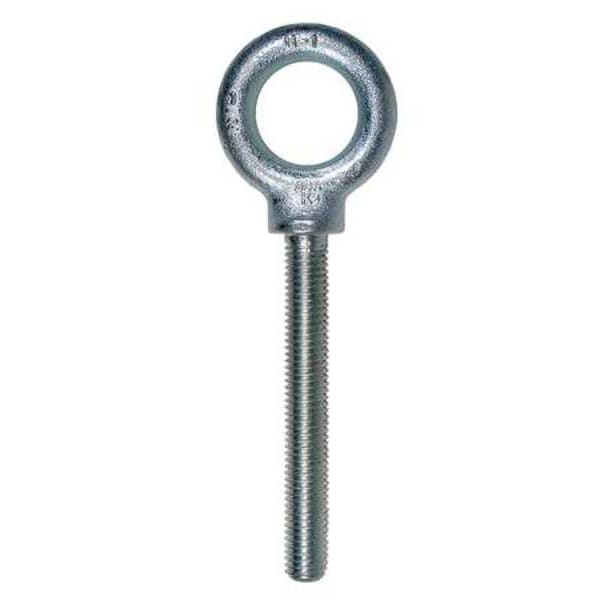

Eye Bolt With Shoulder, 1/2"-13, 4-1/2 in Shank, 1-3/16 in ID, Steel, Zinc Plated
Mfr # K2025-4-1/2-ZN
Zoro # G4428207
CAD Available
product price:Â
$
20.59
/ea
Key Features
CAD Drawing
Shoulder Style
With Shoulder
System of Measurement
Inch
Shank Length
4-1/2 in
Eye Inside Diameter
1-3/16 in
Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- K2025-4-1/2-ZN
- Zoro #
- G4428207
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- 1/2"-13
- Shank Length
- 4-1/2 in
- Eye Inside Diameter
- 1-3/16 in
- Overall Length
- 7-25/32 in
- Thread Length
- 4-1/2"
- Screw Size
- 1/2 in
- Shoulder Length
- 7/32 in
- Shoulder Diameter
- 29/32 in
- Eye Outside Diameter
- 2 1/16 in
- Shank Diameter
- 1/2 in
- Eye Outside Dia.
- 2 1/16 in
- Dia./Thread Size
- 1/2"-13
- Eye Inside Dia.
- 1 3/16 in
- Shoulder Dia.
- 0.88 in to 0.94 in
- Shank Dia.
- 1/2 in
- Wire Rope Length
- 7 25/32 in
Description
Machinery Eye Bolt, System of Measurement Inch, Eyebolt Type Lift with Shoulder, Material Steel, Finish Zinc-Plated, Thread Size 1/2 In.-13, Thread Length 4 1/2 in, Shank Dia. 1/2 in, Shank Length 4 1/2 in, Shoulder Dia. 0.88 in to 0.94 in, Shoulder Length 7/32 in, Eye Inside Dia. 1 3/16 in, Eye Outside Dia. 2 1/16 in, Overall Length 7 25/32 in, Min. Tensile Strength 65,000 psi, Working Load Limit 2,400 lb
