  9. Handheld Digital Oscilloscope, 20 MHz, 2 Channels, 4.5" Color LCD

This item is Discontinued.

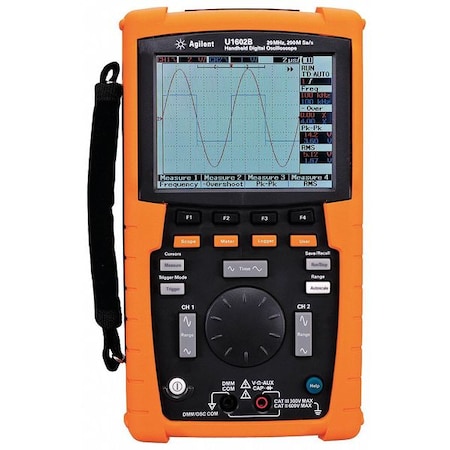

Keysight Technologies Handheld Digital Oscilloscope, 20 MHz, 2 Channels, 4.5" Color LCD U1602B

Handheld Digital Oscilloscope, 20 MHz, 2 Channels, 4.5" Color LCD (Discontinued)

  • Mfr # U1602B
  • Zoro # G2366271
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
U1602B
Zoro #
G2366271
UPC #
-
Country of Origin
Malaysia

Dimensions

Bandwidth (MHz)
20
Manufacturers Warranty Length
3 yr
Max. Record Length
Up to 125 000 Points

Details

Item
Handheld Digital Oscilloscope
Channels
2
Display
4.5 in Color LCD
Sampling Rate
100 MSa/s per Channel, 200 MSa/s Single Channel and Interleaved
Battery Life
Up to 4 hours
Interface
USB 2.0 Full-speed Client
Glitch Capture
Yes
True RMS
Yes
Includes
10x1 Scope Probe, Test Leads, Alligator Clips, USB Cable, AC Power Adapter with Cord, Ni-MH Battery Pack and Quick Start Guide
Calibration Certificate
No
Persistence
Yes
Battery Pack Recharge Time (Hr.)
5
Capacitance Measurements
60.00 nF to 300.0 uF
Safety Rating
Cat III 300V
Battery Type
7.2V, 4500 mAH, Ni-MH Rechargeable Pack
FFT Analysis
Yes
Waveform / Measurement Stored
Up to 10 Setups and Traces
Cursors & Zoom
Yes
Features
Multimeter Measures AC/DC Voltage, Current, Resistance, Diode Check and Continuity,Real-Time Data Logger, 22 Automatic Scope Measurement Functions, Multi-language Quick Help Support
Triggering Mode
Auto, Normal, Single
Input Sensitivity
5 mV/div to 100V/div
Cursors and Zoom
Yes

Description

Handheld Digital Oscilloscope, Bandwidth (MHz) 20, 2 Channels, 4.5 in Color LCD Display, True RMS Yes, Sampling Rate 100 MSa/s per Channel, 200 MSa/s Single Channel and Interleaved, Up to 10 Setups and Traces Waveform / Measurement Stored, Max. Record Length Up to 125 000 Points, FFT Analysis Yes, Cursors and Zoom Yes, Auto, Normal, Single Triggering Mode, Input Sensitivity 5 mV/div to 100V/div, Yes Persistence, Glitch Capture Yes, Capacitance Measurements 60.00 nF to 300.0 uF
