No Product Image Available

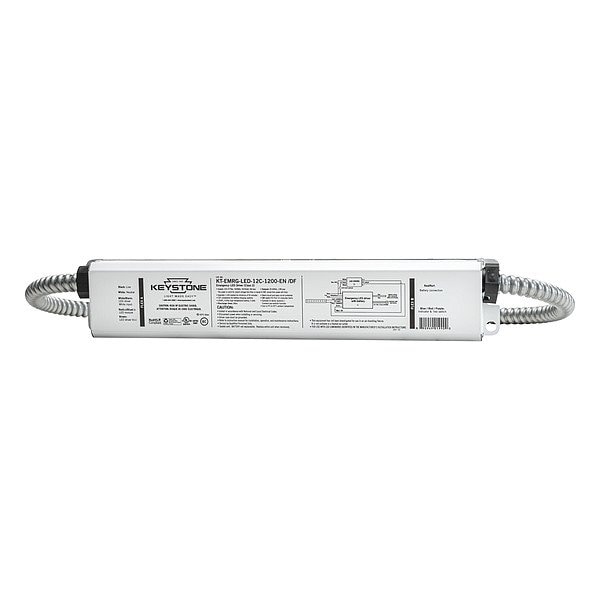

Emergency LED Backup Battery 12W

  • Mfr # KT-EMRG-LED-12C-1200-EN /DF

  • Zoro # G014923439

product price: $304.99
/ea
Free Shipping & Returns

Key Features

Length
12 1/2 in
Width
2 5/16 in
Height
1 5/16 in
Input Voltage
120 to 277V AC
Output Voltage
20 to 60V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KT-EMRG-LED-12C-1200-EN /DF
Zoro #
G014923439
UPC #
890949019900
Country of Origin
China

Dimensions

Length
12 1/2 in
Width
2 5/16 in
Height
1 5/16 in

Details

Item
Emergency LED Backup Battery 12W
Input Voltage
120 to 277V AC
Output Voltage
20 to 60V DC
Emergency Illumination Time
90 min
Number of Bulbs Supported
1
Driver Mounting Location
External from Fixture
Max. Case Temp.
131 Degrees F
Battery Type
Lithium Iron Phosphate
Case Form Factor
Long
Housing Material
Steel
Driver Class
Class 2
Standards
CEC Title 20 Compliant, cULus Listed, RoHS Compliant, UL 924
Max. Bulb Watts
12 W
Power Output - Maximum
12 W
Initial Lumens
Fixture Dependent
Ouput Constant
Constant Current
Profile
Standard Profile
Total Harmonic Distortion
20 %
Frequency
50/60 Hz
Recharge Time
24 hr
Output Technology
Fixed
Operating Amps @ 120V
50 mA
Meets Class 2 Electrical Wiring
Meets Class 2
Wiring Connection
Conduit Attached
Intended LED Usage
Tubes

Description

Not Applicable, Emergency LED Backup Battery 12W, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, Max. Bulb Watts 12 W, Initial Lumens Fixture Dependent, 90 min Emergency Illumination Time, 12 1/2 in Length, 2 5/16 in Width, 1 5/16 in Height, Standard Profile, Steel Housing Material
