  9. Emergency LED Backup Battery 5W
No Product Image Available

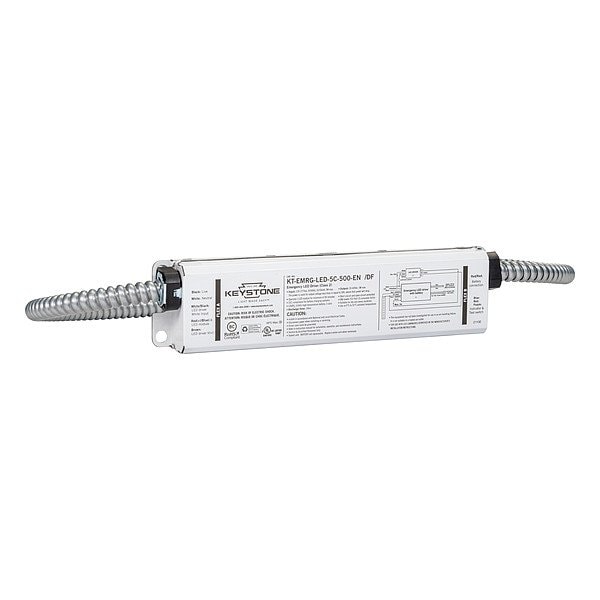

Emergency LED Backup Battery 5W

  • Mfr # KT-EMRG-LED-5C-500-EN /DF

  • Zoro # G014923507

product price: $234.99
/ea
Free Shipping & Returns

Key Features

Length
9 1/2 in
Width
2 5/16 in
Height
1 3/16 in
Input Voltage
120 to 277V AC
Output Voltage
20 to 60V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KT-EMRG-LED-5C-500-EN /DF
Zoro #
G014923507
UPC #
843654132433
Country of Origin
China

Dimensions

Length
9 1/2 in
Width
2 5/16 in
Height
1 3/16 in

Details

Item
Emergency LED Backup Battery 5W
Input Voltage
120 to 277V AC
Output Voltage
20 to 60V DC
Operating Amps @ 120V
50 mA
Standards
CEC Title 20 Compliant, cULus Listed, RoHS Compliant, UL 924
Output Technology
Fixed
Recharge Time
24 hr
Driver Class
Class 2
Driver Mounting Location
External from Fixture
Initial Lumens
Fixture Dependent
Max. Bulb Watts
5 W
Frequency
50/60 Hz
Wiring Connection
Conduit Attached
Battery Type
Lithium Iron Phosphate
Profile
Standard Profile
Housing Material
Steel
Intended LED Usage
Tubes
Meets Class 2 Electrical Wiring
Meets Class 2
Power Output - Maximum
5 W
Ouput Constant
Constant Current
Case Form Factor
Long
Total Harmonic Distortion
20 %
Number of Bulbs Supported
1
Emergency Illumination Time
90 min
Max. Case Temp.
131 Degrees F

Description

Not Applicable, Emergency LED Backup Battery 5W, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, Max. Bulb Watts 5 W, Initial Lumens Fixture Dependent, 90 min Emergency Illumination Time, 9 1/2 in Length, 2 5/16 in Width, 1 3/16 in Height, Standard Profile, Steel Housing Material

Restrictions

Hazardous material
