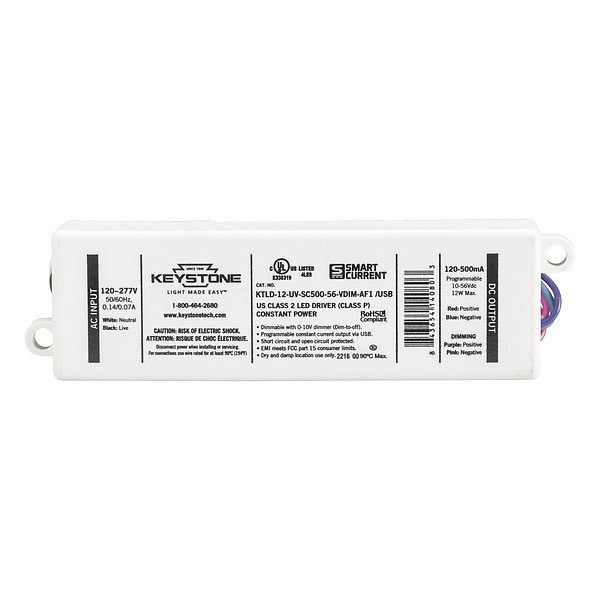

LED Driver, 0-10V, 4-7/8 in - L, 1PK

  • Mfr # KTLD-12-UV-SC500-56-VDIM-AF1 /USB

  • Zoro # G514886982

product price: $39.99
/ea

Key Features

Environmental Rating
Dry Location
Length
4 7/8 in
Width
1 5/16 in
Height
13/16 in
Input Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KTLD-12-UV-SC500-56-VDIM-AF1 /USB
Zoro #
G514886982
UPC #
843654140803
Country of Origin
China

Dimensions

Length
4 7/8 in
Width
1 5/16 in
Height
13/16 in

Details

Item
LED Driver
Environmental Rating
Dry Location
Input Voltage
120 to 277V AC
Output Current
120 to 500 mA
Input Power
12 W
Output Voltage
10 to 56V DC
Ouput Constant
Constant Current
Driver Life Expectancy
85,000 hr
Max. Case Temp.
194 Degrees F
Profile
Standard Profile
Programming Method
Software
Max. Ambient Temp.
140 Degrees F
Number of Bulbs Supported
1
Input Current - Maximum
0.14 A
Power Output - Minimum
1.2 W
Total Harmonic Distortion
20 %
LED Driver Protection
Overload Protection, Overvoltage Protection, Short-Circuit Protection
Power Output - Maximum
12 W
Driver Class
Class 2
Dimming Range
100% to 1%
Power Factor - Minimum
0.9
Number of Fixtures
1
Driver Mounting Location
Remote Mount
Intended LED Usage
Fixture Array
Standards
ANSI C63.4:2009 Class B, EN61000-3-2 (Harmonic Current Emissions Class C), EN61347-1, EN61347-2-13, UL 8750, UL 1310Class 2
Warranty
10 yr Limited
UL Type
Type C
Output Technology
Programmable
Included Components
Integrated USB-C Port
Min. Ambient Temp.
-40 Degrees F
Case Form Factor
Compact
Dimming Method
0-10V
Frequency
50/60 Hz

Description

LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported 1, 120 to 277V AC Input Voltage, 10 to 56V DC Output Voltage, 120 to 500 mA Output Current, 12 W Input Power, 4 7/8 in Length, 1 5/16 in Width, 13/16 in Height, Case Form Factor Compact, Standard Profile, Class 2
