Cast Iron Worm Wheels
- Mfr # CG2-20L2
- Zoro # G404669978
product price:Â
$
42.79
/ea
Key Features
Number of Teeth
20
Material
Cast Iron
System of Measurement
Metric
Tooth Direction
Left Hand
Reduction Ratio
10
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CG2-20L2
- Zoro #
- G404669978
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Pitch Diameter
- 40.34 mm
- Face Width
- 22 mm
- Bore Diameter Tolerance
- +/- 0.2 mm
- Overall Length
- 35 mm
- Outside Diameter
- 46 mm
- Bore Diameter
- 12 mm
- Hub Diameter
- 33 mm
- Wire Rope Length
- 35 mm
- Length
- 35 mm
Details
- Item
- Worm Wheel
- Number of Teeth
- 20
- Material
- Cast Iron
- System of Measurement
- Metric
- Tooth Direction
- Left Hand
- Reduction Ratio
- 10
- Number of Starts
- 2
- Bore Type
- Plain
- Pressure Angle
- 14.5 Degrees
- Metric Module Pitch
- 2

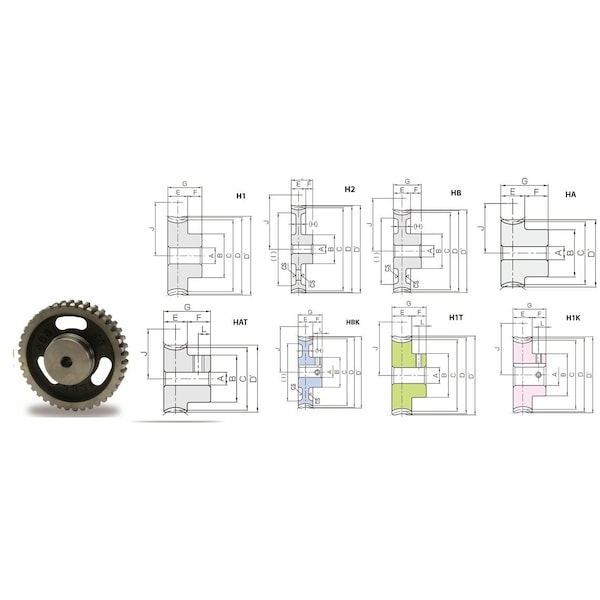

- Gear Shape
- H1
- Hub Projection
- 13 mm
- Precision Class
- KHK W 002 Grade 4
- Shell Material
- Cast Iron
Description
Cast Iron Worm Wheels
