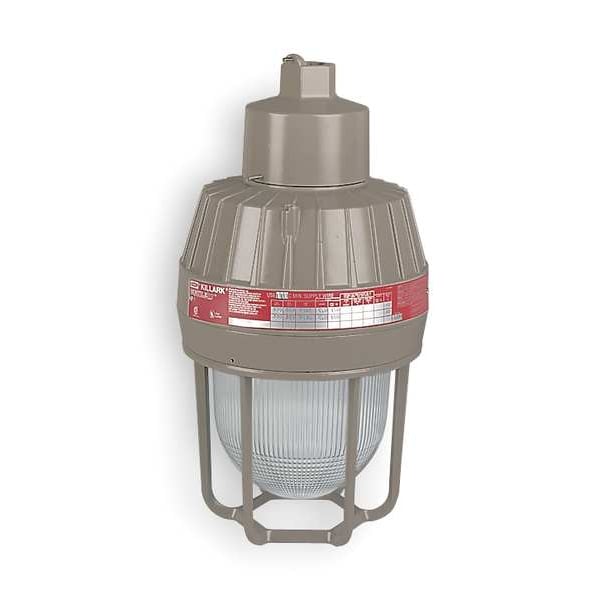

CFL Fixture, With 2PDC8

  • Mfr # EQF6430A2G
  • Zoro # G3275562
product price:
$
1,163.99
/ea
Free Shipping & Returns

Key Features

Standards
Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X
Lumens
4,800 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120/277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EQF6430A2G
Zoro #
G3275562
UPC #
783936149660
Country of Origin
Multiple
Item
Compact Fluorescent Light Fixture
Standards
Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X
Lumens
4,800 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120/277V AC
Fixture Wattage
64
Description/Special Features
Factory Sealed
Ambient Temp. Range
-40 Degrees F
Suggested Lamp Item No.
1PHA3
Lamp Included
Yes
Bulb Designation
GX24-Q-3
Lamp Watts
64 W
Includes
Guard
Lamp Type
Fluorescent
Mounting
Pendant
Housing Finish
Powder Epoxy Paint
Lamp Quantity
2
Fixture Type
High Power Factor
Fixture Voltage
120V AC to 277V AC
Dimmable
No
Ballast Quantity
1
Lamp Type - Fixtures
GX24-Q-3
Emergency Battery Backup
No
Fixture Ballast Type
High Power Factor
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Linkable Up To
Unlinkable
Max. Fixture Wattage
64 W
Series
EQF
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Watts - Fixtures
32.0
Number of Ballasts
1
Mounting Location
Ceiling, Pendant, Wall
Ingress Protection Rating
66
Color Temperature
Lamp Dependent
Mounting Style
Suspended
For Bulb Base Type
Medium
For Number of Bulbs
1
UL/CSA/ETL Listed
CSA Certified, UL Listed
Number of Bulbs
2
Housing Color
Tan
CA Title 24 Compliant
No
For Bulb Type
Fluorescent
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class I, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zones 1 and 2
Min. Ambient Temp.
-40 Degrees F
Temperature Code
T6
For Max. Bulb Wattage
64 W
Warranty
2ACD3
Ambient Temperature - Minimum
-40 Degrees F
Hazardous Location Rating
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
IP Rating
IP66
Maximum Fixture Wattage
64 W
Light Output
4,800 lm

Dimensions

Length
8 7/8 in
Width
8 13/16 in
Height
11-15/16 in
Height (In.)
11-15/16
Width (In.)
8-13/16
Length (In.)
8 13/16 in
Nominal Length
8 13/16 in
Nominal Width
8 13/16 in
Nominal Height
11 15/16 in
Overall Width
8 7/8 in
Overall Height
12 in
Overall Length
8 7/8 in
Nominal Size - Fixtures
1 ft x 1 ft
Wire Rope Length
8 7/8 in

Description

8 13/16 in, Lamp Dependent, 4,800 lm, Max. Fixture Wattage 64 W, Mounting Style Suspended, For Bulb Type Fluorescent, Dimmable No, EQF
