Shop KILLARK

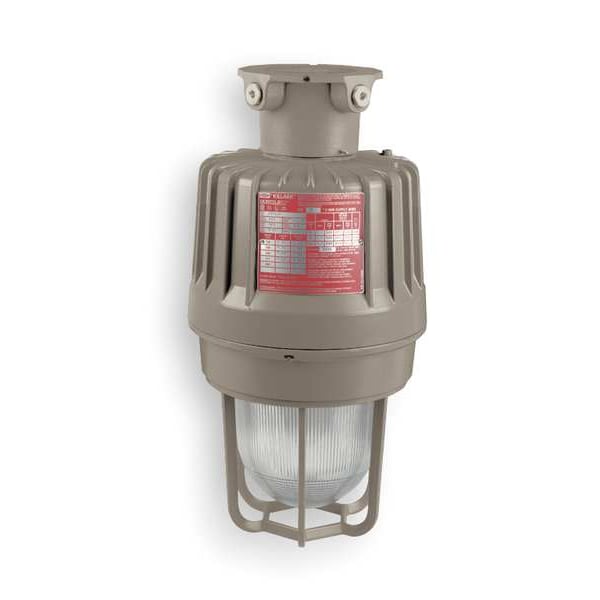

Incandescent Light Fixture, With 2PDD2

  • Mfr # EMI20D4G

  • Zoro # G3117441

product price:
$
889.99
/ea
Free Shipping & Returns

Key Features

Standards
NEMA 3, NEMA 4, NEMA 4X, Suitable For Wet Locations Marine Rated (US Only)
Lumens
6,360 lm
Lighting Technology
Incandescent
Housing Material
Aluminum
Voltage
120/277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EMI20D4G
Zoro #
G3117441
UPC #
783936142869
Country of Origin
United States

Dimensions

Length
7 1/2 in
Width
7-7/16 in
Height
10-5/16 in
Nominal Height
10 5/16 in
Nominal Length
7 7/16 in
Nominal Width
7 7/16 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Length
7 1/2 in
Overall Width
7 1/2 in
Overall Height
10 3/8 in
Wire Rope Length
7 1/2 in

Details

Item
Incandescent Light Fixture
Standards
NEMA 3, NEMA 4, NEMA 4X, Suitable For Wet Locations Marine Rated (US Only)
Lumens
6,360 lm
Lighting Technology
Incandescent
Housing Material
Aluminum
Voltage
120/277V AC
Fixture Wattage
150/200/300
Fixture Type
High Power Factor
Housing Finish
Powder Epoxy Paint
Lamp Quantity
1
Includes
Guard
Bulb Designation
A-23/PS-25
Mounting
Stanchion
Lamp Included
No
Lamp Watts
300 W
Lamp Type
Medium Base
Ambient Temp. Range
-40 Degrees F
Description/Special Features
Corrosion Resistance, Factory Sealed
Suggested Lamp Item No.
2PLK5
Fixture Voltage
120 to 277V AC
Ballast Quantity
1
Dimmable
No
Emergency Battery Backup
No
Fixture Ballast Type
High Power Factor
Linkable Up To
Unlinkable
Lamp Watts - Fixtures
300.0
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Series
EM
Lamp Type - Fixtures
A23
Fixture Type - Decorative and Surface Mount Fixtures
Explosion Proof Pendant
Max. Fixture Wattage
300 W
For Bulb Type
Incandescent
Number of Ballasts
1
For Bulb Base Type
Medium
For Number of Bulbs
1
UL/CSA/ETL Listed
CSA Certified, UL Listed
Color Temperature
Lamp Dependent
CA Title 24 Compliant
No
Min. Ambient Temp.
-40 Degrees F
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class I, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zones 1 and 2
Mounting Style
Suspended
Ingress Protection Rating
66
For Max. Bulb Wattage
300 W
Housing Color
Tan
Temperature Code
T3C
Mounting Location
Ceiling, Pendant, Stanchion, Wall
Warranty
2ACC9
IP Rating
IP66
Light Output
6,360 lm
Maximum Fixture Wattage
300 W
Hazardous Location Rating
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Ambient Temperature - Minimum
-40 Degrees F

Description

7 7/16 in, Lamp Dependent, 6,360 lm, Max. Fixture Wattage 300 W, Mounting Style Suspended, For Bulb Type Incandescent, Dimmable No, EM
