  9. Compact Fluorescent Fixture, With 2PDD1

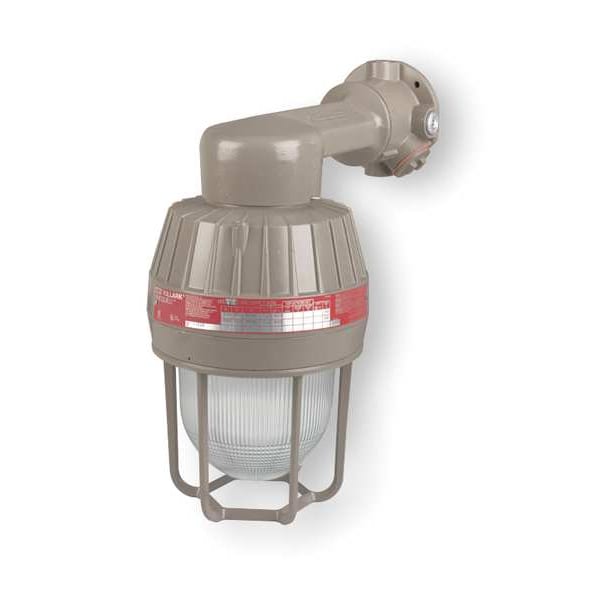

Killark Compact Fluorescent Fixture, With 2PDD1 EQF6430B2G - main

Compact Fluorescent Fixture, With 2PDD1

  • Mfr # EQF6430B2G

  • Zoro # G2913303

product price: $1,417.99
/ea
Free Shipping & Returns

Key Features

Standards
Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X, Listed For Wet Locations
Lumens
4,800 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EQF6430B2G
Zoro #
G2913303
UPC #
783936149721
Country of Origin
Multiple

Dimensions

Length
8-13/16 in
Height
11-15/16 in
Width
8-13/16 in
Height (In.)
11-15/16
Width (In.)
8-13/16
Length (In.)
8-13/16
Nominal Length
8 13/16 in
Nominal Height
11 15/16 in
Nominal Width
8 13/16 in
Overall Width
8 7/8 in
Overall Height
12 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Length
8 7/8 in

Details

Item
Compact Fluorescent Light Fixture
Standards
Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X, Listed For Wet Locations
Lumens
4,800 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
64
Suggested Lamp Item No.
1PHA3
Description/Special Features
Factory Sealed
Includes
Guard
Housing Finish
Powder Epoxy Paint
Lamp Type
Fluorescent
Ambient Temp. Range
-40 Degrees F
Lamp Quantity
2
Mounting
Wall
Lamp Watts
64 W
Lamp Included
Yes
Bulb Designation
GX24-Q-3
Fixture Type
Hazardous Location
Fixture Voltage
120 to 277V AC
Ballast Quantity
1
Dimmable
No
Emergency Battery Backup
No
Series
EQF
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Lamp Watts - Fixtures
32.0
Fixture Ballast Type
High Power Factor
Lamp Type - Fixtures
GX24-Q-3
Max. Fixture Wattage
64 W
Linkable Up To
Unlinkable
For Number of Bulbs
1
Housing Color
Tan
Temperature Code
T6
For Bulb Base Type
Medium
Mounting Location
Ceiling, Pendant, Wall
Min. Ambient Temp.
-40 Degrees F
For Bulb Type
Fluorescent
UL/CSA/ETL Listed
CSA Certified, UL Listed
Number of Bulbs
2
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class I, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zones 1 and 2
CA Title 24 Compliant
No
Ingress Protection Rating
66
For Max. Bulb Wattage
64 W
Mounting Style
Pendant
Number of Ballasts
1
Color Temperature
Lamp Dependent
Warranty
2ACD3

Description

8 13/16 in, Lamp Dependent, 4,800 lm, Max. Fixture Wattage 64 W, Mounting Style Ceiling, Suspended, Stanchion, Wall, For Bulb Type Fluorescent, Dimmable No, EQF
