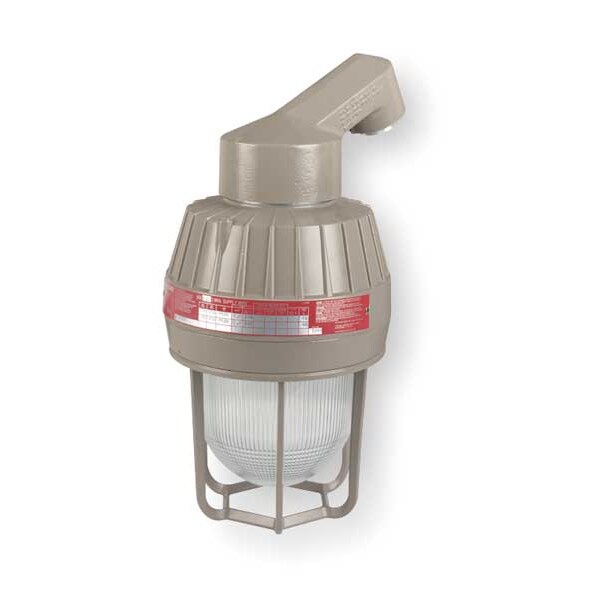

Killark Compact Fluorescent Fixture, With 2PDD2 EQF6430D4G - main
Shop KILLARK

Compact Fluorescent Fixture, With 2PDD2

  • Mfr # EQF6430D4G

  • Zoro # G1431421

product price:  $1,261.99
/ea
Free Shipping & Returns

Key Features

Standards
Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X
Lumens
4,800 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120/277V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EQF6430D4G
Zoro #
G1431421
UPC #
783936149752
Country of Origin
Multiple

Dimensions

Length
8-13/16 in
Height
11-15/16 in
Width
8-13/16 in
Nominal Height
11 15/16 in
Nominal Length
8 13/16 in
Nominal Width
8 13/16 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Width
8 7/8 in
Overall Height
12 in
Overall Length
8 7/8 in

Details

Item
Compact Fluorescent Light Fixture
Standards
Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X
Lumens
4,800 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120/277V AC
Fixture Wattage
64
Fixture Type
Hazardous Location
Lamp Included
Yes
Ambient Temp. Range
-40 Degrees F
Suggested Lamp Item No.
1PHA3
Lamp Quantity
2
Description/Special Features
Factory Sealed
Includes
Guard
Bulb Designation
GX24-Q-3
Lamp Type
Fluorescent
Housing Finish
Powder Epoxy Paint
Mounting
Stanchion
Lamp Watts
64 W
Ballast Quantity
1
Dimmable
No
Fixture Voltage
120 to 277V AC
Linkable Up To
Unlinkable
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Emergency Battery Backup
No
Lamp Watts - Fixtures
32.0
Lamp Type - Fixtures
GX24-Q-3
Series
EQF
Max. Fixture Wattage
64 W
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Ballast Type
High Power Factor
For Bulb Base Type
Medium
CA Title 24 Compliant
No
Number of Bulbs
2
Mounting Style
Pendant
For Number of Bulbs
1
For Bulb Type
Fluorescent
Safety Rating
Class I, Divisions 1 and 2, Groups C, D, Class I, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zones 1 and 2
Housing Color
Tan
Color Temperature
Lamp Dependent
Number of Ballasts
1
UL/CSA/ETL Listed
CSA Certified, UL Listed
Min. Ambient Temp.
-40 Degrees F
Mounting Location
Ceiling, Pendant, Wall
Ingress Protection Rating
66
Temperature Code
T6
For Max. Bulb Wattage
64 W
Warranty
2ACD3

Description

8 13/16 in, Lamp Dependent, 4,800 lm, Max. Fixture Wattage 64 W, Mounting Style Ceiling, Suspended, Stanchion, Wall, For Bulb Type Fluorescent, Dimmable No, EQF
