This item is Discontinued.

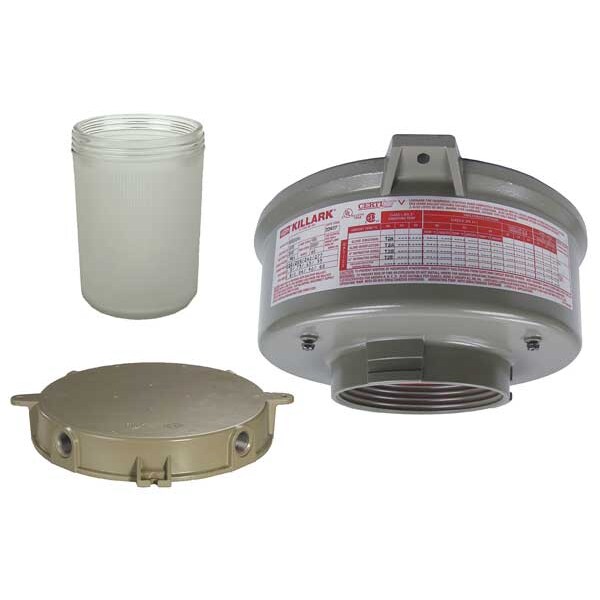

Killark Fixture, CFL, Ceiling Mount VE3Q8442E30X2GLN

Fixture, CFL, Ceiling Mount (Discontinued)

  • Mfr # VE3Q8442E30X2GLN
  • Zoro # G0917287
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VE3Q8442E30X2GLN
Zoro #
G0917287
UPC #
094713426349
Country of Origin
Multiple

Dimensions

Length
13-11/16 in
Height
5-7/16 in
Width
13-11/16 in
Length (In.)
13.67
Width (In.)
13.67
Height (In.)
5.43
Nominal Length
13 11/16 in
Nominal Width
13 11/16 in
Nominal Height
5 7/16 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Length
13 3/4 in
Overall Width
13 3/4 in
Overall Height
5 1/2 in

Details

Item
Hazardous Location Fixture
Standards
NEMA 3, NEMA 4, NEMA 4X
Lumens
6,400 lm
Lighting Technology
Fluorescent
Housing Material
Aluminum
Voltage
120 to 277V AC
Fixture Wattage
84
Suggested Lamp Item No.
1PHA9
Description/Special Features
Fixture Features Two Independent Redundant Systems, (1) 42W Lamp Operates In Emergency Mode
Lamp Included
Yes
Ambient Temp. Range
-20 Degrees to 40 Degrees F
Mounting
Ceiling
Lamp Watts
42 W
Housing Finish
Tan
Lamp Type
Compact Fluorescent
Lamp Quantity
3
Bulb Designation
F42TBX/A/ECO
Match Code
4
Fixture Item Number
4KGN9
Mounting Bracket Item Number
2PDE8
Ballast Quantity
2
Fixture Voltage
120 to 277V AC
Dimmable
No
Lamp Watts - Fixtures
42.0
Max. Fixture Wattage
84 W
Lamp Type - Fixtures
F42TBX/A/ECO
Fixture Ballast Type
High Power Factor
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Emergency Battery Backup
Yes
Linkable Up To
Unlinkable
IP Rating
66
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Series
VE3Q
For Bulb Type
Fluorescent
CA Title 24 Compliant
No
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Class l, Groups IIC, llB, llA
Min. Ambient Temp.
-20 Degrees F
Housing Color
Tan
For Max. Bulb Wattage
84 W
Lumens per Watt
76 lm/W
Max. Ambient Temp.
40 Degrees F
Mounting Location
Ceiling
Temperature Code
T2B
Ingress Protection Rating
66
Number of Bulbs
2
For Number of Bulbs
3
Number of Ballasts
2
Warranty
2ACD3

Description

13 11/16 in, 6,400 lm, 76 lm/W, Max. Fixture Wattage 84 W, For Bulb Type Fluorescent, Dimmable No, VE3Q
