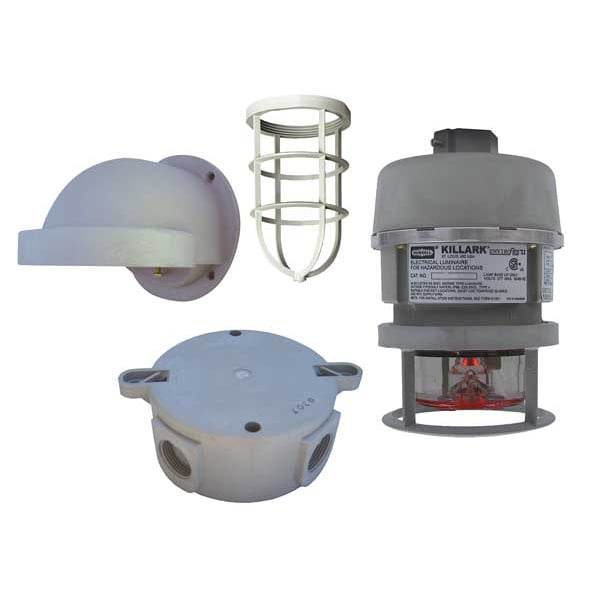

Killark Hazard Location Fixtures NVSLCFG26RBG - main

Hazard Location Fixtures

  • Mfr # NVSLCFG26RBG

  • Zoro # G0716676

product price: $489.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Red
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NVSLCFG26RBG
Zoro #
G0716676
UPC #
-
Country of Origin
Multiple

Dimensions

Nominal Length
7 17/64 in
Length (In.)
4.22
Nominal Width
4 35/64 in
Nominal Height
7 31/32 in
Width (In.)
7.26
Height (In.)
7.96
Dia. (In.)
7.26
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Length
7 9/32 in
Overall Width
4 9/16 in
Overall Height
8 in
Overall Depth
7 31/32 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
LED
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Red
Includes
Guard
IP Rating
IP66
Mounting
Wall
Standards
Enclosure Type 4X, Marine Rated (US only), NEMA 4X
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Lamp Included
No
Lamp Life (Hours)
50K
Lamp Quantity
1
Type
Flashing
Max. Fixture Wattage
1 W
Fixture Wattage
1
Dimmable
No
Lamp Watts - Fixtures
1.0
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Voltage
12 to 80 V DC
Emergency Battery Backup
No
Ambient Temp. Range (F)
-40 to 40c
Fixture Voltage
12 to 80V AC
Color
Red
Lamp Type
LED
Housing Finish
Powder Epoxy Paint
Series
NVSL
Flashes per Minute
420 Microflashes
Linkable Up To
Unlinkable
Lamp Type - Fixtures
Flashing Strobe
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Lamp Watts
1 W
Max. Ambient Temp.
104 Degrees F
For Bulb Type
LED
UL/CSA/ETL Listed
CSA, CSA Certified, UL Listed
For Max. Bulb Wattage
1 W
Number of Bulbs
1
Flasher Strobe Color
Red
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Groups IIC, IIB, IIA, Zone 2
Min. Ambient Temp.
-40 Degrees F
Ingress Protection Rating
66
Temperature Code
T6
Mounting Location
Wall
CA Title 24 Compliant
No
For Bulb Shape
Integrated LED
Light Source
LED
Wattage
1 W
Lens Color
Red
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
NEMA Rating
NEMA 4X
Operating Temperature - Maximum
40 Degrees C
Operating Temperature - Minimum
-40 Degrees C
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 420 Microflashes, Housing Material Fiberglass Reinforced, Polyester, Mounting Wall, Voltage 12-80V DC
