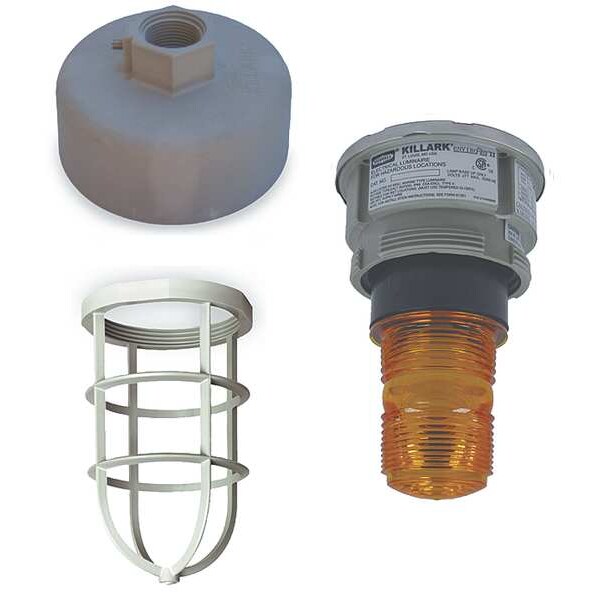

Killark Hazard Location Fixtures NVSZMFG26AAG - main

Hazard Location Fixtures

  • Mfr # NVSZMFG26AAG

  • Zoro # G0486263

product price: $413.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSZMFG26AAG
Zoro #
G0486263
UPC #
783936070964
Country of Origin
Multiple

Dimensions

Length (In.)
4.22
Nominal Height
11 35/64 in
Nominal Width
4 3/8 in
Dia. (In.)
7.26
Height (In.)
11.55
Width (In.)
4.22
Overall Height
11 1/2 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Width
4 3/8 in
Overall Depth
11 9/16 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Pendant
Standards
Marine Rated (US Only), NEMA 4X
Lamp Type - Fixtures
Flashing Strobe
Lamp Quantity
1
Color
Amber
Max. Fixture Wattage
2.7 W
Housing Finish
Gray
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Series
NVS
Fixture Wattage
2.7
Lamp Life (Hours)
10K
Ambient Temp. Range (F)
-40 to 104
Lamp Included
Yes
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Voltage
12 to 80V AC
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Amber Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Dimmable
No
Type
Flashing
Emergency Battery Backup
No
Linkable Up To
Unlinkable
Lamp Type
LED
Voltage
12 to 80 V DC
Flashes per Minute
60-80
Lamp Watts - Fixtures
2.7
Lamp Watts
2.7 W
Max. Ambient Temp.
104 Degrees F
Number of Bulbs
1
For Number of Bulbs
1
Mounting Location
Pendant
For Max. Bulb Wattage
2.7 W
CA Title 24 Compliant
No
Min. Ambient Temp.
-40 Degrees F
Ingress Protection Rating
66
Temperature Code
T2C
Flasher Strobe Color
Amber
For Bulb Type
Xenon
UL/CSA/ETL Listed
CSA Certified, UL Listed
Mounting Style
Pendant
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Zone 2, Groups IIC, IIB, IIA
Number of Lamps
1
NEMA Rating
NEMA 4X
Operating Temperature - Maximum
40 Degrees C
Operating Temperature - Minimum
-40 Degrees C
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Lens Color
Amber
Wattage
2.7 W
Light Source
Xenon
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Amber, Lamp Type LED, Flashes per Minute 60-80, Housing Material Fiberglass Reinforced, Polyester, Mounting Pendant, Voltage 12-80V DC
