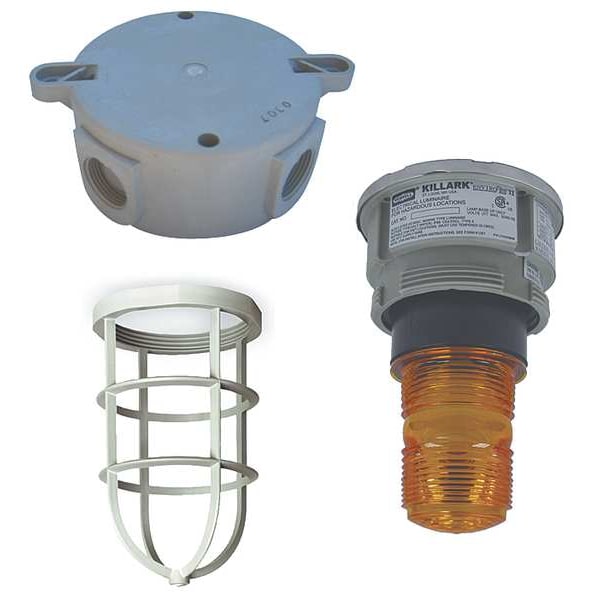

Killark Hazard Location Fixtures NVSZMFG26AXG - main

Hazard Location Fixtures

  • Mfr # NVSZMFG26AXG

  • Zoro # G0934963

product price: $416.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSZMFG26AXG
Zoro #
G0934963
UPC #
00783936071114
Country of Origin
Multiple

Dimensions

Height (In.)
11.19
Length (In.)
4.22
Dia. (In.)
7.26
Nominal Height
11 3/16 in
Nominal Width
4 35/64 in
Width (In.)
4.22
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Width
4 9/16 in
Overall Height
11 1/4 in
Overall Depth
11 3/16 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Ceiling
Standards
Marine Rated (US Only), NEMA 4X
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Flashes per Minute
60-80
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Amber Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Lamp Included
Yes
Type
Flashing
Color
Amber
Lamp Quantity
1
Ambient Temp. Range (F)
-40 to 104
Lamp Type
LED
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Lamp Watts - Fixtures
2.7
Linkable Up To
Unlinkable
Emergency Battery Backup
No
Housing Finish
Gray
Fixture Voltage
12 to 80V AC
Voltage
12 to 80 V DC
Series
NVS
Fixture Wattage
2.7
Dimmable
No
Max. Fixture Wattage
2.7 W
Lamp Life (Hours)
10,000
Lamp Type - Fixtures
Flashing Strobe
Lamp Watts
2.7 W
Number of Bulbs
1
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Zone 2, Groups IIC, IIB, IIA
Temperature Code
T2C
For Bulb Type
Xenon
For Number of Bulbs
1
CA Title 24 Compliant
No
Max. Ambient Temp.
104 Degrees F
Min. Ambient Temp.
-40 Degrees F
UL/CSA/ETL Listed
CSA Certified, UL Listed
Mounting Location
Ceiling
Flasher Strobe Color
Amber
Ingress Protection Rating
66
For Max. Bulb Wattage
2.7 W
Number of Lamps
1
Operating Temperature - Maximum
40 Degrees C
Light Source
Xenon
Lens Color
Amber
Operating Temperature - Minimum
-40 Degrees C
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
NEMA Rating
NEMA 4X
Wattage
2.7 W
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Amber, Lamp Type LED, Flashes per Minute 60-80, Housing Material Fiberglass Reinforced, Polyester, Mounting Ceiling, Voltage 12-80V DC
