This item is Discontinued.

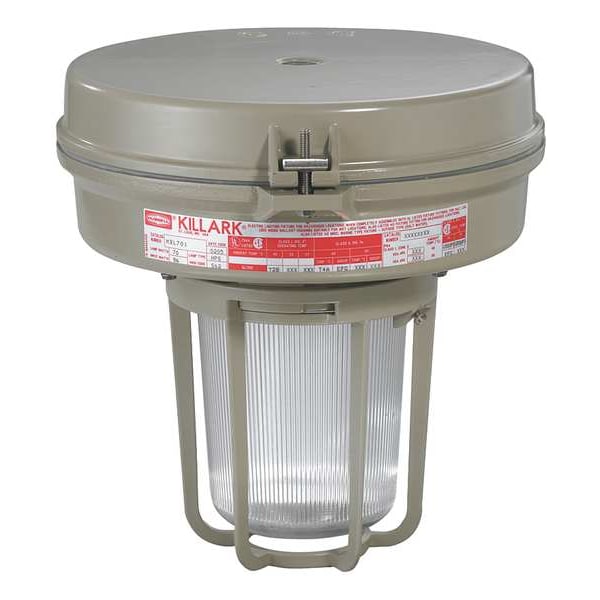

Killark HPS Light Fixture, With 2PDE4 And 2PDE7 VM1S100A2GLG

HPS Light Fixture, With 2PDE4 And 2PDE7 (Discontinued)

  • Mfr # VM1S100A2GLG
  • Zoro # G0494986
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VM1S100A2GLG
Zoro #
G0494986
UPC #
-
Country of Origin
United States

Dimensions

Length
13-9/16 in
Height
3-7/8 in
Width
11-7/8 in
Height (In.)
3-7/8
Length (In.)
13-9/16
Width (In.)
11-7/8
Nominal Height
3 7/8 in
Nominal Width
11 7/8 in
Nominal Length
13 9/16 in
Overall Width
11 7/8 in
Overall Height
3 7/8 in
Overall Length
13 5/8 in
Nominal Size - Fixtures
1 ft x 1 ft

Details

Item
High Pressure Sodium Light Fixture
Standards
NEMA 3, NEMA 4, NEMA 4X, NR Restricted Breathing Option, Listed For Wet Locations
Lumens
9,500 lm
Lighting Technology
HID
Housing Material
Aluminum
Voltage
120/208/240/277V AC
Fixture Wattage
100
Mounting
Pendant
Housing Finish
Tan
Bulb Designation
S54
Description/Special Features
Suitable for Wet Locations
Fixture Type
Hazardous Location
Lamp Watts
100 W
Lamp Type
High Pressure Sodium
Lamp Quantity
1
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Lamp Included
No
Suggested Lamp Item No.
4V604
Includes
2PDE4 Glass Globe And 2PDE7 Mounting Splice Box
Ballast Quantity
1
Fixture Voltage
120/208/240/277V AC
Dimmable
No
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Linkable Up To
Unlinkable
IP Rating
66
Fixture Ballast Type
Pulse Start
Lamp Watts - Fixtures
100.0
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Type - Fixtures
S54
Emergency Battery Backup
No
Series
VM1
Max. Fixture Wattage
100 W
Mounting Style
Pendant
For Max. Bulb Wattage
100 W
For Number of Bulbs
1
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class I, Zone 2 AEx nAnR, Class I, Zone 2 Ex nR, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Class l, Groups IIC, llB, llA, Zone 2
CA Title 24 Compliant
No
Temperature Code
T2C
Housing Color
Tan
Ingress Protection Rating
66
UL/CSA/ETL Listed
CSA Certified, UL Listed
Min. Ambient Temp.
-40 Degrees F
For Bulb Type
High Pressure Sodium
Lumens per Watt
95 lm/W
Number of Bulbs
1
Max. Ambient Temp.
149 Degrees F
Mounting Location
Pendant
Color Temperature
Lamp Dependent
Warranty
2ACC9

Description

13 9/16 in, Lamp Dependent, 9,500 lm, 95 lm/W, Max. Fixture Wattage 100 W, Mounting Style Suspended, For Bulb Type High Pressure Sodium, Dimmable No, VM1
