This item is Discontinued.

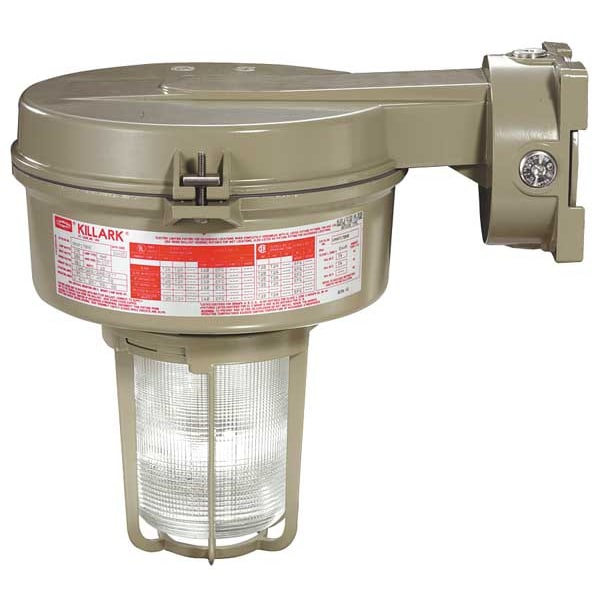

Killark HPS Light Fixture, With 2PDE4 And 2PDE9 VM3S150B2GLG

HPS Light Fixture, With 2PDE4 And 2PDE9 (Discontinued)

  • Mfr # VM3S150B2GLG
  • Zoro # G2238984
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM3S150B2GLG
Zoro #
G2238984
UPC #
094705486825
Country of Origin
United States

Dimensions

Length
13-9/16 in
Width
11-7/8 in
Height
5-3/8 in
Height (In.)
5-3/8
Length (In.)
13-9/16
Width (In.)
11-7/8
Nominal Height
5 3/8 in
Nominal Length
13 9/16 in
Nominal Width
11 7/8 in
Overall Height
5 3/8 in
Overall Length
13 5/8 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Width
11 7/8 in

Details

Item
High Pressure Sodium Light Fixture
Standards
NEMA 3, NEMA 4, NEMA 4X
Lumens
16,000 lm
Lighting Technology
HID
Housing Material
Aluminum
Voltage
120/208/240/277V AC
Fixture Wattage
150
Lamp Watts
150 W
Includes
2PDE4 Glass Globe And 2PDE9 Mounting Splice Box Wall Mount
Description/Special Features
Suitable for Wet Locations
Lamp Type
High Pressure Sodium
Suggested Lamp Item No.
2VAD7
Ambient Temp. Range
-40 Degrees to 149 Degrees F
Lamp Quantity
1
Housing Finish
Tan
Mounting
Wall
Bulb Designation
S55
Fixture Type
Hazardous Location
Lamp Included
No
Dimmable
No
Fixture Voltage
120/208/240/277V AC
Ballast Quantity
1
IP Rating
66
Max. Fixture Wattage
150 W
Linkable Up To
Unlinkable
Series
VM3
Fixture Ballast Type
Pulse Start
Lamp Type - Fixtures
S55
Emergency Battery Backup
No
Lamp Watts - Fixtures
150.0
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Number of Bulbs
1
UL/CSA/ETL Listed
CSA Certified, UL Listed
Max. Ambient Temp.
149 Degrees F
Min. Ambient Temp.
-40 Degrees F
Mounting Location
Wall
Mounting Style
Wall
For Number of Bulbs
1
Housing Color
Tan
For Bulb Base Type
Mogul
Number of Ballasts
1
Ingress Protection Rating
66
For Bulb Type
High Pressure Sodium
CA Title 24 Compliant
No
Lumens per Watt
106 lm/W
For Max. Bulb Wattage
150 W
Color Temperature
Lamp Dependent
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Class l, Groups IIC, llB, llA, Zone 2
Temperature Code
T2B
Warranty
2ACC9

Description

13 9/16 in, Lamp Dependent, 16,000 lm, 106 lm/W, Max. Fixture Wattage 150 W, Mounting Style Bracket, For Bulb Type High Pressure Sodium, Dimmable No, VM3
