  9. IncandLightFix, CF, 150W, 4 5/8"L, 2 1/4"H

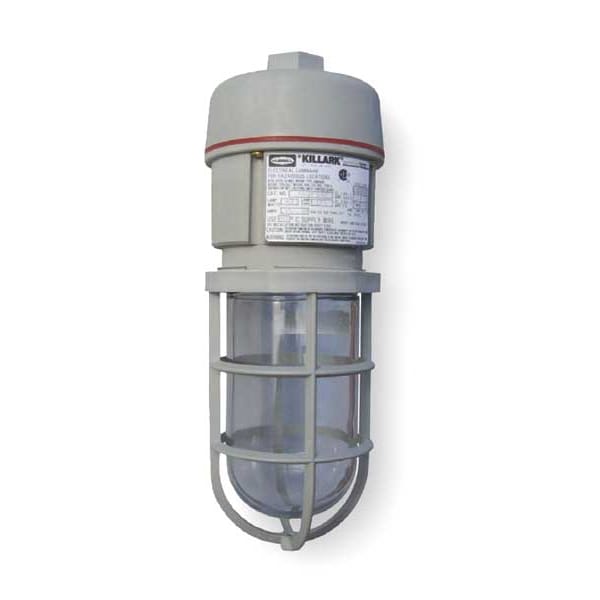

Killark IncandLightFix, CF, 150W, 4 5/8"L, 2 1/4"H NV2IG15ASG - main

IncandLightFix, CF, 150W, 4 5/8"L, 2 1/4"H

  • Mfr # NV2IG15ASG

  • Zoro # G1726681

product price: $152.99
/ea
Free Shipping & Returns

Key Features

Standards
ABS Approved, NEMA 3, NEMA 4, NEMA 4X
Lumens
2,087 lm
Lighting Technology
Incandescent
Housing Material
Polyester
Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NV2IG15ASG
Zoro #
G1726681
UPC #
783936050560
Country of Origin
Multiple

Dimensions

Length
4-9/16 in
Height
2-1/4 in
Width
4-9/16 in
Height (In.)
2-1/4
Length (In.)
4-9/16
Width (In.)
4-9/16
Nominal Length
4 9/16 in
Nominal Width
4 9/16 in
Nominal Height
2 1/4 in
Overall Length
4 5/8 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Height
2 1/4 in
Overall Width
4 5/8 in

Details

Item
Incandescent Light Fixture
Standards
ABS Approved, NEMA 3, NEMA 4, NEMA 4X
Lumens
2,087 lm
Lighting Technology
Incandescent
Housing Material
Polyester
Voltage
120 to 277V AC
Fixture Wattage
150
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Suggested Lamp Item No.
2PLK4
Lamp Included
No
Lamp Watts
150 W
Mounting
Pendant
Housing Finish
Powder Epoxy Paint
Lamp Type
Compact Fluorescent
Fixture Type
Hazardous Location
Bulb Designation
A19/A21
Includes
Clear Globe, Guard
Description/Special Features
Non-Metallic Corrosion Resistant, Designed for Indoor and Outdoor Globe Down Applications
Lamp Quantity
1
Finish
Powder Epoxy Paint
Dimmable
No
Fixture Voltage
120 to 277V AC
Ballast Quantity
1
Lamp Type - Fixtures
A19, A21
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Linkable Up To
Unlinkable
Emergency Battery Backup
No
Lamp Watts - Fixtures
150.0
IP Rating
66
Series
NV2
Max. Fixture Wattage
150 W
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Ballast Type
Electronic
For Bulb Shape
A19/A21
Max. Ambient Temp.
104 Degrees F
Ingress Protection Rating
66
Mounting Location
Pendant
Mounting Style
Pendant
For Number of Bulbs
1
CA Title 24 Compliant
No
Number of Ballasts
1
For Bulb Base Type
Medium
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G, Class l, Groups llC, llB, llA, Class III, Zone 2
Min. Ambient Temp.
-40 Degrees F
Lumens per Watt
13 lm/W
For Max. Bulb Wattage
150 W
Housing Color
Gray
UL/CSA/ETL Listed
CSA US Certified, UL Marine Rated
Temperature Code
T2B
Color Temperature
Lamp Dependent
For Bulb Type
Incandescent
Warranty
2ACC6

Description

4 9/16 in, Lamp Dependent, 2,087 lm, 13 lm/W, Max. Fixture Wattage 150 W, Mounting Style Suspended, For Bulb Type Incandescent, Dimmable No, NV2
