This item is Discontinued.

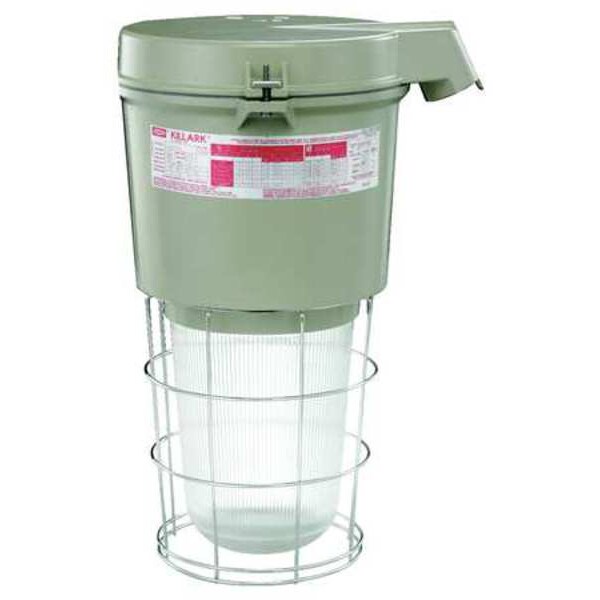

Killark MH Light Fixture, With 2PDE6 And 2PDF1 VM5P400D4GLG

MH Light Fixture, With 2PDE6 And 2PDF1 (Discontinued)

  • Mfr # VM5P400D4GLG
  • Zoro # G3508836
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VM5P400D4GLG
Zoro #
G3508836
UPC #
094705496473
Country of Origin
Multiple

Dimensions

Length
13-9/16 in
Height
9-9/16 in
Width
11-7/8 in
Nominal Width
11 7/8 in
Nominal Length
13 9/16 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Length
13 5/8 in
Overall Height
9 5/8 in
Overall Width
11 7/8 in

Details

Item
Metal Halide Light Fixture
Fixture Type
Hazardous Location
Fixture Wattage
400
Lamp Type
Metal Halide
Lamp Watts
400 W
Ambient Temp. Range
-40 Degrees F
Voltage
120/208/240/277V AC
Lamp Included
No
Mounting
Stanchion
Includes
2PDE6 Glass Globe And 2PDE7 Mounting Splice Box
Housing Material
Aluminum
Standards
NEMA 3, NEMA 4, NEMA 4X, Listed For Wet Locations
Bulb Designation
M135
Suggested Lamp Item No.
1PCZ3
Description/Special Features
Suitable for Wet Locations
Housing Finish
Tan
Lamp Quantity
1
Ballast Quantity
1
Dimmable
No
Lumens
43,900 lm
Fixture Voltage
120/208/240/277V AC
Lighting Technology
HID
IP Rating
66
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Linkable Up To
Unlinkable
Series
VM5
Fixture Ballast Type
Pulse Start
Lamp Type - Fixtures
M135
Max. Fixture Wattage
400 W
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Watts - Fixtures
400.0
Emergency Battery Backup
No
CA Title 24 Compliant
No
For Bulb Base Type
Mogul
For Bulb Type
Metal Halide
Safety Rating
Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Class l, Groups IIC, llB, llA, Zone 2
Mounting Location
Stanchion
UL/CSA/ETL Listed
CSA Certified, UL Listed
Number of Bulbs
1
Number of Ballasts
1
Temperature Code
T2
Color Temperature
Lamp Dependent
Housing Color
Tan
Ingress Protection Rating
66
For Number of Bulbs
1
Lumens per Watt
109 lm/W
For Max. Bulb Wattage
400 W
Warranty
2ACD3

Description

Metal Halide Light Fixture, Hazardous Location Fixture Type, Metal Halide Lamp Type, Lamp Quantity 1, Bulb Designation M135, Lamp Watts 400 W, Suggested Lamp Item No. 1PCZ3, Fixture Wattage 400, Voltage 120/208/240/277V AC, Suitable for Wet Locations, No Lamp Included, Ambient Temp. Range -40 Degrees F, Housing Material Aluminum, Stanchion Mounting, Length 13-9/16 in, Height 9-9/16 in, Includes 2PDE6 Glass Globe And 2PDE7 Mounting Splice Box, Width 11-7/8 in
