Shop All Detent, Lock, Pop And Plunger Pins
Kipp

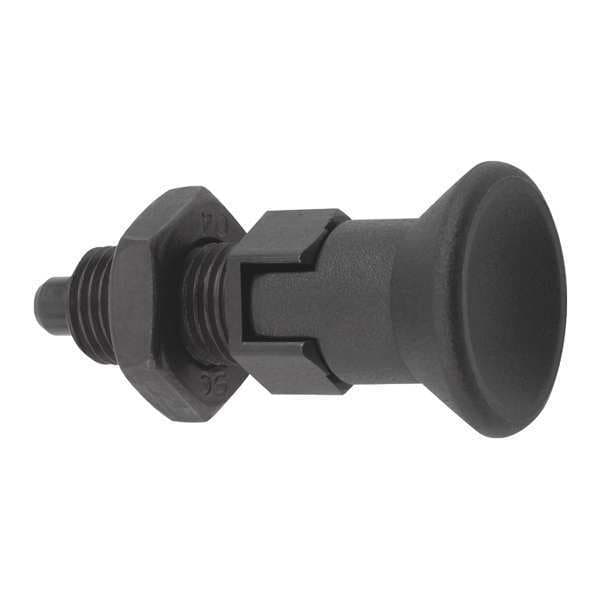

Indexing Plunger D1= M12X1, 5, D=6, Style D, Lockout Type w Locknut, Steel Hardened
Mfr # K0338.4206
Zoro # G7355358
product price: $14.95
/ea
$14.95
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Style Knob
- Grip Length 15/16"
- Pin Dia. 15/64"
- Knob Type Lock Out
- Material Steel
Product Information
- Brand Kipp
- MFR # K0338.4206
- Zoro # G7355358
- Country of Origin Germany
- Category Detent, Lock, Pop And Plunger Pins
Dimensions
| Grip Length | 15/16" |
| Pin Dia. | 15/64" |
| Barrel Height | 0.66" |
| Length | 2-23/64" |
| Barrel Dia. | 43/64" |
| Tip Dia. | 0.23" |
| Tip Length | 0.236" |
| Thread Size | M12x1.5 |
| Plunger Dia. | 6.00mm |
| Overall Length | 51.70mm |
| Plunger Width | 14.00mm |
| Thread Length | 17.00mm |
Details
Description
Spring Plunger, Thread Size M12x1.5, Thread Length 17.00mm, Plunger Material Steel, Plunger Dia. 6.00mm, Plunger Projection 6.00mm, Mounting Type Threaded, With Locking Plunger Yes, Final Nose Force 14 N, Initial Nose Force 6 N, Overall Length 51.70mm, Plunger Width 14.00mm, Thread Pitch 1.50mm, Handle Type Knob, Body Finish Black Oxide, Body Material Steel, Handle Color Black Gray, Handle Material Thermoplastic, Retractable Yes, Standards RoHS
