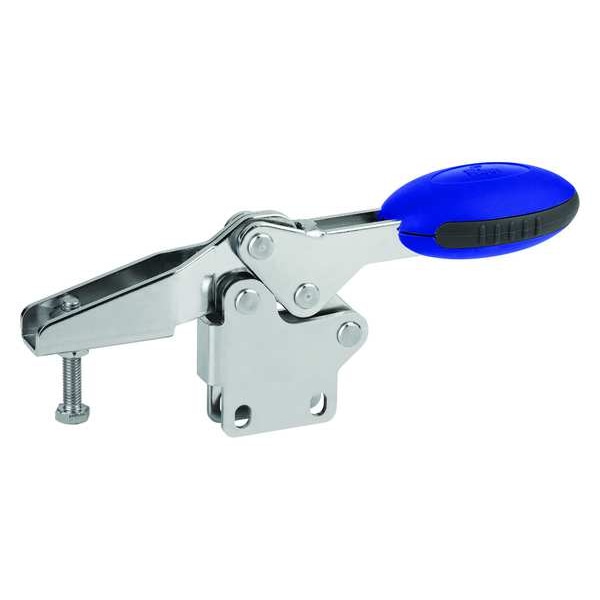

Toggle Clamp Horizontal, Foot Vert. F1=2000, Clamping Spindle M08X45, Stainless Steel, Blue
Mfr # K0661.108001
Zoro # G4028066
product price:Â
$
101.99
/ea
Free Shipping & Returns
Key Features
Holding Capacity (Lb.)
186 lb
Overall Height (In.)
3.47 in
Body Material
Stainless Steel
Overall Length (In.)
8.78 in
Spindle Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- K0661.108001
- Zoro #
- G4028066
- UPC #
- -
- Country of Origin
- Türkiye
- Item
- Toggle Clamp
- Holding Capacity (Lb.)
- 186 lb
- Body Material
- Stainless Steel
- Spindle Material
- Stainless Steel
- Spindle
- Threaded Stainless Steel
- Handle
- 180 Degrees
- Arm
- Horizontal Closing
- Application
- Clamping
- Includes
- Adjustable Clamping Spindle, Straight Foot
- Base Mounting Centers (In.)
- 1.02
- Construction
- Stainless Steel
- Mounting Holes Center to Center - Short Side
- 14.1 mm
- Handle Orientation
- Horizontal
- Mounting Holes Center to Center - Long Side
- 26 mm
- Holding Capacity - Maximum
- 186 lbf
- Handle Material
- Polyamide
Description
Toggle Clamp, Handle Orientation Horizontal, Holding Capacity - Maximum 186 lbf, Height Under Arm 46.5 mm, Application Clamping, Body Material Stainless Steel, Handle Material Polyamide, Includes Adjustable Clamping Spindle, Straight Foot, Mounting Holes Center to Center - Long Side 26 mm, Mounting Holes Center to Center - Short Side 14.1 mm, Overall Depth 88.2 mm, Overall Length 223.1 mm, Spindle Material Stainless Steel, Spindle Thread Size M8 x 45
