Kipp

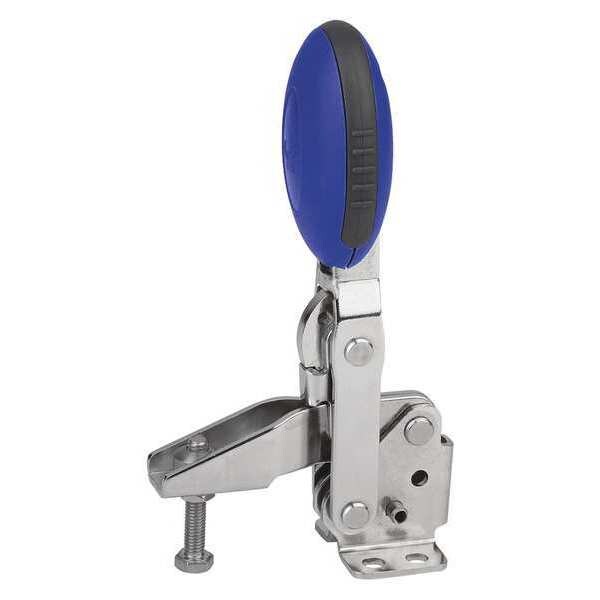

Toggle Clamp Vertical, Foot Horiz., Stainless Steel Bright, Blue

product price: $92.85
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Flat Foot, Stainless Steel Body, Vertical Handle
  • Holding Capacity (Lb.) 211
  • Overall Height (In.) 7.25 in
  • Body Material Stainless Steel
  • Latch Not Included
See all product information

Product Information

Dimensions

Overall Height (In.) 7.25 in
Overall Length (In.) 4.23 in
Height Under Arm (In.) 1.29 in
Dia. (In.) 0.26 in
Thread Size M8
Overall Length 107 mm
Height Under Arm 32.7 mm
Spindle Thread Size M8 x 45
Overall Depth 184.2 mm

Details

Item Toggle Clamp
Type Flat Foot, Stainless Steel Body, Vertical Handle
Holding Capacity (Lb.) 211
Body Material Stainless Steel
Latch Not Included
Spindle Material Stainless Steel
Spindle Threaded Stainless Steel
Arm U-Shaped
Handle 90 Degrees
Base Mounting Centers (In.) 0.83 x 1.26
Application Clamping
Includes Adjustable Clamping Spindle, Flat Foot
Handle Material Polyamide
Handle Orientation Vertical
Holding Capacity - Maximum 211 lbf
Mounting Holes Center to Center - Long Side 32 mm
Mounting Holes Center to Center - Short Side 21 mm

Description

Toggle Clamp, Handle Orientation Vertical, Holding Capacity - Maximum 211 lbf, Height Under Arm 32.7 mm, Application Clamping, Body Material Stainless Steel, Handle Material Polyamide, Includes Adjustable Clamping Spindle, Flat Foot, Mounting Holes Center to Center - Long Side 32 mm, Mounting Holes Center to Center - Short Side 21 mm, Overall Depth 184.2 mm, Overall Length 107 mm, Spindle Material Stainless Steel, Spindle Thread Size M8 x 45
