  13. Electric Chain Hoist, 500 lb cap.

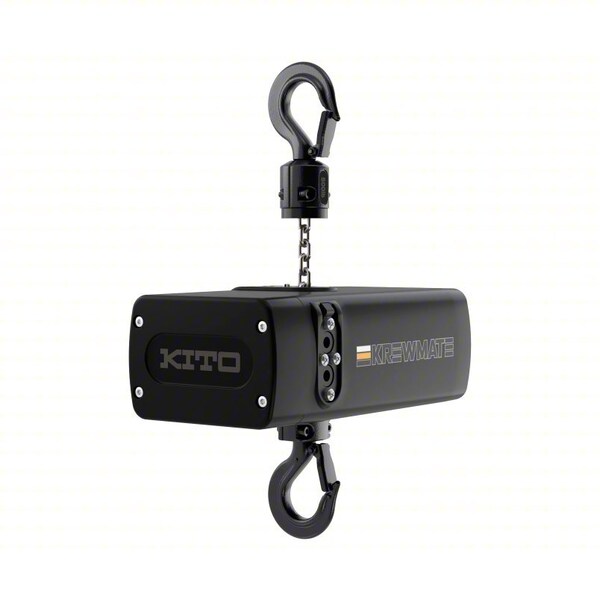

Kito Electric Chain Hoist, 500 lb cap. TEM003L-60 - main

Electric Chain Hoist, 500 lb cap.

  • Mfr # TEM003L-60

  • Zoro # G109833728

product price: $4,176.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Phase
3
Standards
ANSI E1.6-2, ASME, CE, FEM, IGVW SQP2-2018, JIS/ISO, UL 1340/CSA 22.2
Voltage
230V AC
Thermal Protection
Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TEM003L-60
Zoro #
G109833728
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
62 ft
Lifting Hook Opening Width
29/32 in
Body Width
5 29/32 in
Body Depth
3 3/32 in
Minimum Retracted Length
12 13/32 in
Mfr. Warranty Length
3 yr
Controller Cord Length
2 1/2 ft
Maximum Lifting Length
60 ft
Body Length
11 1/2 in

Details

Color
Black
Phase
3
Standards
ANSI E1.6-2, ASME, CE, FEM, IGVW SQP2-2018, JIS/ISO, UL 1340/CSA 22.2
Voltage
230V AC
Thermal Protection
Included
Number of Speeds
1
Item
Electric Chain Hoist
Clutch Type
Friction Clutch
Hoist IP Rating
IP55
Starts and Stops per Hour
300
Brake Type
Electromagnetic
Chain Grade
Grade 80
Lifting Hook Material
Steel
Maximum Lifting Capacity
500 lb
Chain Finish
Nickel Plated
Lifting Hook Type
Hook with Safety Latch
Number of Reeves
1
Programmable
Non-Programmable
Mount Type
Hook Mounted - No Trolley
Controls
Push Button Pendant
Headroom
12 13/32 in
Body Material
Die-Cast Aluminum
Chain Material
Nickel Plated
Fixed Lift Speed
16 fpm
Current at Min. Voltage
1.4 A
Resistance Properties
Nickel Plated Chain, Plated hardware, Powder coated IP65 body
Number of Load Chains
1
Features
Electronic overload limiter, Grease-Packed Gearbox, Solid State Relay Board, Unique Chain Guide, Upper/Lower limits
Includes Brake
Brake Included
Duty Classification
H4
Includes Clutch
Clutch Included
Included Components
Chain Container
Motor Horsepower
3/8 hp
Current at Max. Voltage
1.4 A
Overload Protection Included
Yes
For Outdoor Use
Yes
Operating Voltage
230V AC

Description

Electric Hoists

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
