  13. Electric Chain Hoist, 500 lb cap.

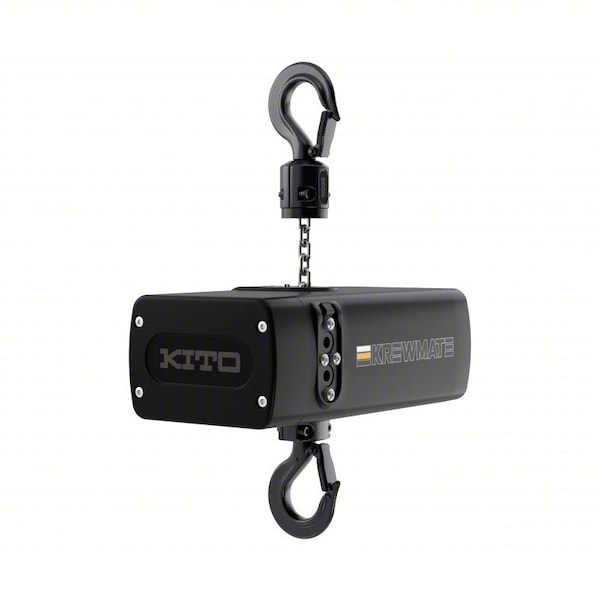

Kito Electric Chain Hoist, 500 lb cap. TSEM003L-60 - main

Electric Chain Hoist, 500 lb cap.

  • Mfr # TSEM003L-60

  • Zoro # G709843363

product price: $4,139.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Phase
1
Standards
ANSI E1.6-2, ASME, CE, FEM, IGVW SQP2-2018, JIS/ISO, UL 1340/CSA 22.2
Voltage
230V AC
Chain Length
62 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TSEM003L-60
Zoro #
G709843363
UPC #
-
Country of Origin
Japan

Dimensions

Chain Length
62 ft
Controller Cord Length
2 1/2 ft
Maximum Lifting Length
60 ft
Body Length
11 1/2 in
Mfr. Warranty Length
3 yr
Body Width
5 29/32 in
Body Depth
3 3/32 in
Minimum Retracted Length
12 13/32 in
Lifting Hook Opening Width
29/32 in

Details

Color
Black
Phase
1
Standards
ANSI E1.6-2, ASME, CE, FEM, IGVW SQP2-2018, JIS/ISO, UL 1340/CSA 22.2
Voltage
230V AC
Item
Electric Chain Hoist
Thermal Protection
Included
Number of Speeds
1
Number of Load Chains
1
Clutch Type
Friction Clutch
Current at Max. Voltage
2.3 A
For Outdoor Use
Yes
Motor Horsepower
1/4 hp
Chain Finish
Nickel Plated
Duty Classification
H4
Includes Brake
Brake Included
Headroom
12 13/32 in
Fixed Lift Speed
12 fpm
Chain Grade
Grade 80
Chain Material
Nickel Plated
Lifting Hook Material
Steel
Includes Clutch
Clutch Included
Programmable
Non-Programmable
Lifting Hook Type
Hook with Safety Latch
Maximum Lifting Capacity
500 lb
Starts and Stops per Hour
300
Resistance Properties
Nickel Plated Chain, Plated hardware, Powder coated IP65 body
Mount Type
Hook Mounted - No Trolley
Hoist IP Rating
IP55
Overload Protection Included
Yes
Features
Electronic overload limiter, Grease-Packed Gearbox, Solid State Relay Board, Unique Chain Guide, Upper/Lower limits
Body Material
Die-Cast Aluminum
Included Components
Chain Container
Controls
Push Button Pendant
Current at Min. Voltage
2.3 A
Number of Reeves
1
Brake Type
Electromagnetic
Operating Voltage
230V AC

Description

Electric Hoists

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
