Klein Tools

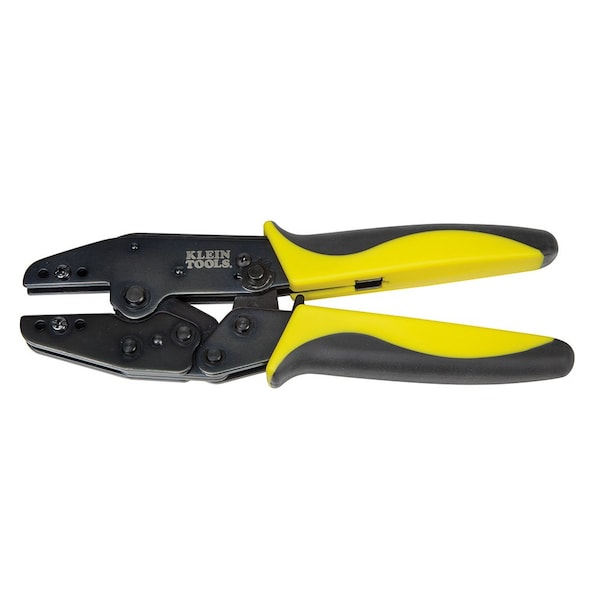

8 3/4 in Ratchet Crimper Frame 10 to 22 AWG

product price: $33.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Capacity 10 to 22 AWG
  • Overall Length 8 3/4 in
  • Material Steel
  • Features Prevent the Release of the Connector Prior to Full Compression; Safety Crimp Release Helps Eliminate Rejected Terminations Due to Incorrect Positioning; Corrosion Resistance and Durability; Grips Enhance Comfort, Visibility and Allow Quick Identification; Thumb-Screws Secure Die-Sets For Quick, Easy Changes
  • Application CATV, Electrical, Home Theater, Satellite and Security System Ratcheting Crimper Frame With Optional Dies is Perfect For Fast, Reliable Connector Installations
See all product information

Product Information

Dimensions

Overall Length 8 3/4 in
Tool Length 8 3/4 in
Maximum Compatible Wire Size 10 AWG
Minimum Compatible Wire Size 22 AWG

Details

Capacity 10 to 22 AWG
Material Steel
Features Prevent the Release of the Connector Prior to Full Compression; Safety Crimp Release Helps Eliminate Rejected Terminations Due to Incorrect Positioning; Corrosion Resistance and Durability; Grips Enhance Comfort, Visibility and Allow Quick Identification; Thumb-Screws Secure Die-Sets For Quick, Easy Changes
Application CATV, Electrical, Home Theater, Satellite and Security System Ratcheting Crimper Frame With Optional Dies is Perfect For Fast, Reliable Connector Installations
Insulated / Uninsulated Uninsulated
Handle Type Rubber Grips
Includes Wire Stripper
Item Ratchet Crimper
Cuts No
Color Black/Yellow
Strips Yes
Replacement Die Code VDV201-040, VDV201-042, VDV205-035, VDV205-036, VDV205-039, VDV205-044, VDV211-037, VDV211-038, VDV211-041, VDV211-043, VDV212-034
For Use With Optional Die Sets
Finish black oxide
Adjustable Not Adjustable
Insulated No
Tool Weight 1.2 lb
Grip Material Rubber
Crimping Capacity 22 to 10 AWG
Connector Color Code Black, Yellow
Adjustability Not Adjustable
Crimper Style Ratcheting Crimper
Body Material Steel
Ratcheting Mechanism Yes
Includes Wire Cutter No
Includes Crimping Die No
Maximum Crimping Force Not Rated
Includes Wire Stripper Yes
Compatible Terminal Type Insulated, Uninsulated
Grip Style Deluxe Cushion
Replacement Die Part Number VDV201-040 (RG58/59/62/174 Fiber Optic), VDV201-042 (RG174/179/Belden 8218 and Fiber Optic), VDV205-039 (Pin Terminal Insulated or Non-Insulated Ferrule AW12-22), VDV205-044 (Non-Insulated Terminal AWG8-18), VDV211-037 (RG6/58/59/62), VDV211-038 (RG 58/59/62), VDV211-041 (RG58/59/62/6), VDV211-043 (RG8/11/174/179/213), VDV212-034 (CATV F-Connector RG59/6)

Description

Ratchet Crimper, Crimper Style Ratcheting Crimper, Crimping Capacity 22 to 10 AWG, Compatible Terminal Type Insulated, Uninsulated, Minimum Compatible Wire Size 22 AWG, Maximum Compatible Wire Size 10 AWG, Maximum Crimping Force Not Rated, Tool Length 8 3/4 in, Includes Wire Cutter No, Includes Wire Stripper Yes, Insulated No, Adjustability Not Adjustable, Body Material Steel, Connector Color Code Black, Yellow, Grip Material Rubber, Grip Style Deluxe Cushion, Includes Wire Stripper
