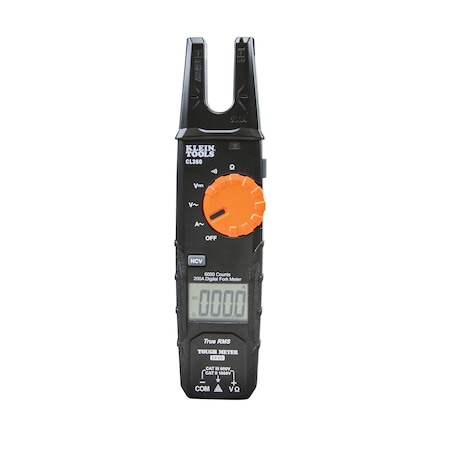

Clamp Meter, LCD, 200 A, 0.6 in (15 mm) Jaw Capacity, CAT II 1000V, CAT III 600V Safety Rating

Mfr # CL360
Zoro # G7341789

$79.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Digital/Analog Digital
Max. AC Amps 200
Clamp Meter Jaw Style Split
Max. DC Volts 1,000 V
Max. Ohms 60 megaohm

See all product information

Brand Klein Tools
MFR # CL360
Zoro # G7341789
UPC #
92644691140
Country of Origin China
Category Clamp On Power Meters

Dimensions

Overall Width	2.1 in
Overall Height	1.4 in
Battery Size	AAA

Details

Item	Digital Clamp Meter
Digital/Analog	Digital
Max. AC Amps	200
Clamp Meter Jaw Style	Split
Max. DC Volts	1,000 V
Max. Ohms	60 megaohm
Jaw Capacity	0.6 in (15 mm)
Safety Rating	CAT III 1000V, CAT IV 600V
Display	LCD
Jaw Opening	0.58 in
Max. AC Volts	600 V
Calibration Frequency	40 to 400 Hz
Bar Graph	No
Calibration Certificate	Not Included
Auto Power Off	Yes
Includes	(2) 1.5V AAA Batteries, Carrying Case, Instruction Manual, Straight Input Test Leads
Non-Contact Voltage Detector	Yes
Peak Hold	Yes
Audible Continuity	Yes
Inrush	No
AC Current Accuracy	+/-1.8%
Operating Temp.	-32 Degrees to 122 Degrees F
Counts	6,000
Diode Test	Yes
Battery Type	AAA
Auto Ranging	Yes
Data Hold	Yes
Data Logging	No
Special Features	Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
Instrument Counts	6,000
Minimum Operating Temperature	32 Degrees F
AC Voltage Measurement Resolution	0.1 V
Intrinsically Safe	No
Maximum DC Current Measurement	200 A
Maximum AC Voltage Measurement	1,000 V
DC Voltage Measurement Resolution	1 V
Basic AC Voltage Accuracy	+/-1.20% + 3 Digits
Waterproof	No
Current Leakage Testing	No
Maximum AC Current Measurement	200 A
Calibration Certificate Included	No
Display Type	LCD
Parameters Measured	AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Bluetooth Compatible	No
IP Rating	IP40
Basic AC Current Accuracy	+/-1.80%
Inrush Current Measurable	No
AC Response Calculation	TRMS
Thermal Imaging	No
Basic DC Voltage Accuracy	+/-1.00% + 5 Digits
Bar Graph Included	No
Dustproof	Yes
AC Current Measurement Resolution	0.1 A
Removable Screen	No
Resistance Measurement Accuracy	+/-1.0% + 5 Digits
Resistance Measurement Resolution	10 microohm
Battery Chemistry	Alkaline
Jaw Style	Open-Jaw
Maximum Resistance Measurement	60 megaohm
Basic DC Current Accuracy	+/-1.00% + 5 Digits
Maximum Operating Temperature	122 Degrees F
Maximum DC Voltage Measurement	1,000 V
Minimum AC Voltage Measurement	600 V
Batteries Included	Yes

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 200 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 200 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Intrinsically Safe No, Dustproof Yes, Waterproof No, Data Logging No, Thermal Imaging No
