  9. Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps
Shop All Digital Multimeters
Klein Tools

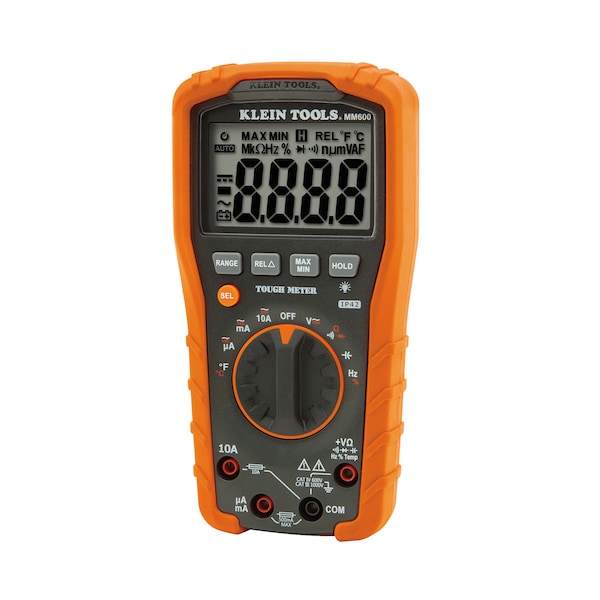

Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps (Discontinued)

Free Shipping & Returns
This Product is Discontinued
Shop for all Digital Multimeters

Key Features

  • Instrument Counts 4,000
  • Basic DC Accuracy +/-1%
  • Instrument Safety Rating CAT III 1000V, CAT IV 600V
  • Max. AC Volts 1,000
  • Max. DC Volts 1,000
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Overall Height 2.1 in
Depth 7 in
Overall Width 3.6 in
Battery Size AAA
Pulse Width Yes

Details

Item Digital Multimeter
Instrument Counts 4,000
Basic DC Accuracy +/-1%
Instrument Safety Rating CAT III 1000V, CAT IV 600V
Max. AC Volts 1,000
Max. DC Volts 1,000
Max. AC Amps 10
Max. DC Amps 10
Audible Continuity Yes
Max. Ohms 40 M
Auto Ranging Yes
Standards CE
Auto Power Off No
Diode Test Yes
Data Hold Yes
Data Logging No
Temp. Range 0 Degrees to 1000 Degrees F
Includes (2) Batteries, Alligator Clips, Carrying Pouch, Test Leads, Thermocouple with Adapter
Instrument Frequency Counter Range 1 Hz to 500 kHz
AC Response Average
Min./Max. Memory No
Bar Graph No
Series Klein Tools MM600
Interface None
Calibration Certificate Included No
Duty Cycle Yes
Special Features Built to Endure a 6.6 Ft Drop and Withstand Daily Wear and Tear on the Job Site
Capacitance Range 40 pF to 1000 nF
Battery Type AAA Alkaline
NIST Certification By Not Certified
Peak Hold No
Display LCD
Weight 14.4 oz
Intrinsically Safe No
Calibration Certificate Not Included
NIST Certification By Manufacturer Not Certified
Current Leakage Testing No
Software Included No
Maximum AC Voltage Measurement 1,000 V
Maximum DC Current Measurement 10 A
Minimum Storage Temperature -4 Degrees F
Dustproof No
Bar Graph Included No
Maximum AC Current Measurement 10 A
Fuse Access Yes
Minimum Frequency Measurement 1 Hz
Basic AC Current Accuracy +/-2%
Batteries Included Yes
Minimum AC Voltage Measurement 0 V
Capacitance Measurement Accuracy +/-5.00%
Bluetooth Compatible No
Minimum Temperature Measurement 0 Degrees F
Style Full Size
Maximum Capacitance Measurement 1,000 nF
Waterproof No
IP Rating IP42
Basic DC Voltage Accuracy +/-1.00%
Battery Chemistry Alkaline
Battery Access Yes
Display Type LCD
Multimeter Features Standard
Minimum/Maximum Memory No
Minimum AC Current Measurement 0 uA
Basic AC Voltage Accuracy +/-1.50%
AC Response Calculation Average
Temperature Measurement Resolution 0 Degrees F
Maximum DC Voltage Measurement 1,000 V
Resistance Measurement Accuracy +/-2%
Minimum DC Voltage Measurement 0 V
Minimum DC Current Measurement 0 mA
Removable Screen No
Temperature Measurement Accuracy +/-2.00%
Thermal Imaging No
Computer Interface Connection Type None
Basic DC Current Accuracy +/-1.5%
Maximum Storage Temperature 140 Degrees F
Frequency Measurement Accuracy +/-1.00%
Maximum Resistance Measurement 40 megaohm
Minimum Operating Temperature 14 Degrees F
Maximum Frequency Measurement 500 kHz
Maximum Temperature Measurement 1,000 Degrees F
Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Minimum Capacitance Measurement 40 pF
Maximum Operating Temperature 122 Degrees F

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-1.00 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1.5 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 4,000, Special Features Built to Endure a 6.6 Ft Drop and Withstand Daily Wear and Tear on the Job Site, Maximum AC Current Measurement 10 A
