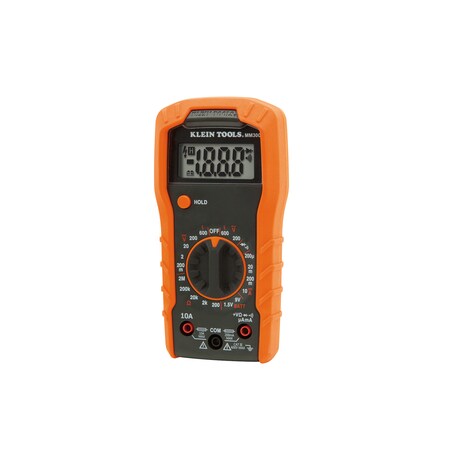

Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps (Discontinued)

This Product is Discontinued
Shop for all Digital Multimeters

Key Features

  • Instrument Counts 2,000
  • Basic DC Accuracy +/-0.5%
  • Instrument Safety Rating CAT III 600V
  • Max. AC Volts 600
  • Max. DC Volts 600
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Depth 6 in
Overall Height 1.8 in
Overall Width 3.2 in
Battery Size AAA

Details

Item Digital Multimeter
Instrument Counts 2,000
Basic DC Accuracy +/-0.5%
Instrument Safety Rating CAT III 600V
Max. AC Volts 600
Max. DC Volts 600
Max. AC Amps 10
Max. DC Amps 10
Audible Continuity Yes
Max. Ohms 20 M
Temp. Range 32 Degrees to 104 Degrees F
Display LCD
Diode Test Yes
Peak Hold No
Calibration Certificate Included No
Auto Power Off No
Capacitance Range 1000 uF
Duty Cycle Yes
Standards CE, cETLus
NIST Certification By Not Certified
Includes Battery, Test Leads
Battery Type AAA Alkaline
Data Logging No
Min./Max. Memory No
Series Klein Tools MM300
AC Response Average
Bar Graph No
Data Hold Yes
Interface None
Auto Ranging No
Special Features Built to Withstand a 3.3 ft (1 m) Drop and Withstand Daily Wear and Tear on the Job Site, CAT III 600V Safety Rating, For use in Basic and Controlled Electromagnetic Environments Such as Residential, Business and Light-Industrial Locations, Includes Test Leads, Batteries and User Manual, Low Battery Indicator and Easily Accessible Battery Compartment, Multimeter Measures upto 600V AC/DC Voltage, 10A DC Current and 2Mohms Resistance, Voltage Tester for Batteries, Diodes and Continuity
Weight 8.2 oz
Calibration Certificate Not Included
Intrinsically Safe No
Display Type LCD
Maximum DC Current Measurement 10 A
Thermal Imaging No
NIST Certification By Manufacturer Not Certified
Maximum Storage Temperature 140 Degrees F
Waterproof No
Computer Interface Connection Type None
Minimum Operating Temperature 32 Degrees F
Maximum AC Voltage Measurement 600 V
Maximum DC Voltage Measurement 600 V
Maximum Capacitance Measurement 1,000 uF
Basic AC Voltage Accuracy +/-1.2%
Maximum Temperature Measurement 104 Degrees F
Dustproof No
Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Bluetooth Compatible No
Maximum AC Current Measurement 10 A
Maximum Resistance Measurement 20 megaohm
Battery Access Yes
Minimum DC Current Measurement 200 uA
AC Response Calculation Average
Basic DC Voltage Accuracy +/-0.50%
Safety Rating_BACKGROUND MM300 CAT III 600V
Software Included No
Minimum Resistance Measurement 200 ohm
Current Leakage Testing No
Basic DC Current Accuracy +/-1%
Resistance Measurement Accuracy +/-1.5%
Minimum/Maximum Memory No
Maximum Operating Temperature 104 Degrees F
Minimum Storage Temperature 14 Degrees F
Bar Graph Included No
Minimum DC Voltage Measurement 200 V
Fuse Access Yes
Multimeter Features Standard
Style Full Size
Removable Screen No
Minimum Temperature Measurement 32 Degrees F
Batteries Included Yes
Battery Chemistry Alkaline
Minimum AC Voltage Measurement 200 V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.2 Percent, Basic DC Voltage Accuracy +/-0.50 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1 Percent, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000
