- Digital Multimeter, Auto-Ranging, 600V
This Product is Discontinued
Klein Tools

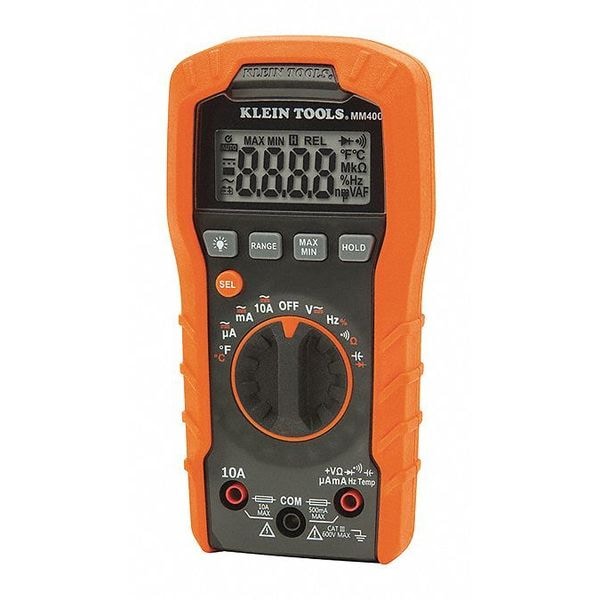

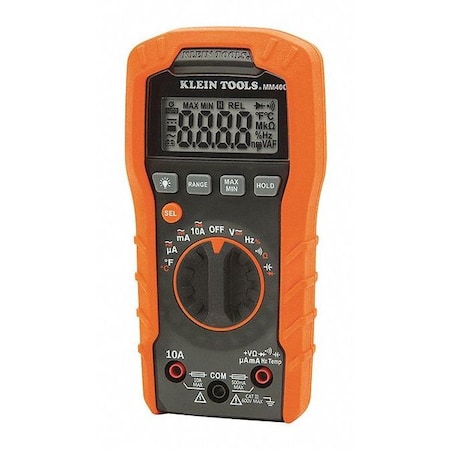

Digital Multimeter, Auto-Ranging, 600V (Discontinued)
Mfr # MM400
Zoro # G3498463
This Product is Discontinued
Key Features
- Instrument Counts 4,000
- Basic DC Accuracy +/-1.20% of Reading + 3 Digits
- Instrument Safety Rating CAT III 600V
- Max. AC Volts 600
- Max. DC Volts 600
Frequently Bought Together
- Brand Klein Tools
- MFR # MM400
- Zoro # G3498463
- UPC # 092644690211
- Country of Origin China
- Category Digital Multimeters
Dimensions
| Manufacturers Warranty Length | 2 yr |
| Depth | 6 in |
| Overall Height | 1.8 in |
| Overall Width | 3.2 in |
| Battery Size | AAA |
| Pulse Width | Yes |
Details
| Item | Digital Multimeter |
| Instrument Counts | 4,000 |
| Basic DC Accuracy | +/-1.20% of Reading + 3 Digits |
| Instrument Safety Rating | CAT III 600V |
| Max. AC Volts | 600 |
| Max. DC Volts | 600 |
| Max. AC Amps | 10 A |
| Max. DC Amps | 10 A |
| Audible Continuity | Yes |
| Max. Ohms | 40 megohm |
| Temp. Range | 0 Degrees to 1000 Degrees F |
| Special Features | Built to Withstand a 3.3 ft (1 m) Drop and Withstand Daily Wear and Tear on the Job Site, CAT III 600V Safety Rating, Electrical Tester Measures Temperature, Capacitance, Frequency, Duty-Cycle and Test Diodes and Continuity, For use in Basic and Controlled Electromagnetic Environments Such as Residential, Business and Light-Industrial Locations, Includes Test Leads, Thermocouple with Adapter, Batteries and User Manual, Low Battery Indicator and Easily Accessible Battery Compartment, Multimeter Measures upto 600V AC/DC Voltage, 10A AC/DC Current and 40 Mohms Resistance |
| Bar Graph | No |
| NIST Certification By | Not Certified |
| Diode Test | Yes |
| AC Response | Average |
| Standards | CE, cETLus |
| Capacitance Range | 0 to 200 mF |
| Display | Backlit 3 Digit LCD |
| Calibration Certificate Included | No |
| Duty Cycle | Yes |
| Instrument Frequency Counter Range | 1 Hz to 50 kHz |
| Data Logging | No |
| Auto Power Off | Yes |
| Peak Hold | No |
| Auto Ranging | Yes |
| Series | Klein Tools 400 |
| Min./Max. Memory | yes |
| Data Hold | Yes |
| Interface | None |
| Battery Type | 1.5V AAA Alkaline |
| Includes | Battery, Test Leads, Thermocouple |
| Weight | 8.2 oz |
| Intrinsically Safe | No |
| Calibration Certificate | Not Included |
| Batteries Included | Yes |
| Fuse Access | Yes |
| Minimum Operating Temperature | 32 Degrees F |
| Minimum Resistance Measurement | 400 ohm |
| Maximum DC Current Measurement | 10 A |
| AC Response Calculation | Average |
| Current Leakage Testing | No |
| Resistance Measurement Accuracy | +/-2% |
| Basic AC Voltage Accuracy | +/-1.2% |
| Style | Full Size |
| Maximum Operating Temperature | 104 Degrees F |
| Temperature Measurement Accuracy | +/-3.00% |
| Parameters Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| Frequency Measurement Accuracy | +/-1.50% |
| Maximum AC Voltage Measurement | 600 V |
| Battery Voltage | 1.5V |
| Bluetooth Compatible | No |
| Dustproof | No |
| Computer Interface Connection Type | None |
| Minimum AC Current Measurement | 400 uA |
| Removable Screen | No |
| Maximum Frequency Measurement | 50 kHz |
| Thermal Imaging | No |
| Basic DC Current Accuracy | +/-1% |
| Maximum Capacitance Measurement | 200 uF |
| Display Type | LCD |
| Software Included | No |
| Battery Chemistry | Alkaline |
| Multimeter Features | Standard |
| Maximum Storage Temperature | 140 Degrees F |
| Basic AC Current Accuracy | +/-1.5% |
| Basic DC Voltage Accuracy | +/-1.00% + 8 Digits |
| Minimum Temperature Measurement | 0 Degrees F |
| Waterproof | No |
| Minimum Capacitance Measurement | 40 nF |
| Minimum DC Voltage Measurement | 400 V |
| Capacitance Measurement Accuracy | +/-5.00% |
| Maximum Temperature Measurement | 1,000 Degrees F |
| Maximum DC Voltage Measurement | 600 V |
| Minimum Frequency Measurement | 1 Hz |
| Minimum DC Current Measurement | 400 uA |
| Temperature Measurement Resolution | 0 Degrees F |
| Bar Graph Included | No |
| Maximum AC Current Measurement | 10 A |
| Minimum/Maximum Memory | Yes |
| Maximum Resistance Measurement | 40 megaohm |
| Minimum AC Voltage Measurement | 4 V |
| Battery Access | Yes |
| NIST Certification By Manufacturer | Not Certified |
| Minimum Storage Temperature | 14 Degrees F |
Description
Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.2 Percent, Basic DC Voltage Accuracy +/-1.00 Percent + 8 Digits, Data Hold Yes, Basic DC Current Accuracy +/-1 Percent, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000
